1
Engine displacement
300
2
Model
GTS
3
Year
2014
4
Trim
GTS ie ABS
5
Parts Catalog
Remote control switches - Battery - Horn
6
Parts Diagram
Parts Catalog
Front shield
by
Saddle/seats

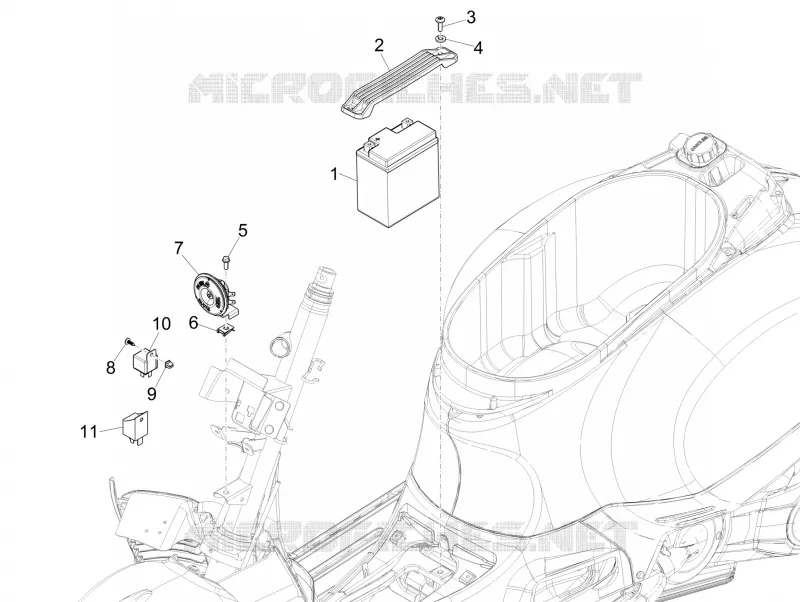

Remote control switches - Battery - Horn
1
2
3
4
5
6
7
8
9
10
11
1
BATTERIA YUASA YTX12-BS(12V-10AH)
583158
$278,17 Unit Price incl. VAT
2
Battery bracket
621830
Not Available
3
VITE ESAGONALE FLANGIATA M6X16 CL10,9
B016777
$0,16 Unit Price incl. VAT
4
RONDELLA ELASTICA (6,4X11,8X1)
016406
$0,34 Unit Price incl. VAT
5
VITE ESAGONALE FLANGIATA M6X16 CL10,9
B016777
$0,16 Unit Price incl. VAT
6
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
7
CLACSON 12V - CC
58093R
$14,39 Unit Price incl. VAT
8
VITE AUTOF. TCCIC D4,2x13 UNI 947
259349
$0,17 Unit Price incl. VAT
9
TASSELLO AD ESPANSIONE
157716
$0,08 Unit Price incl. VAT
10
Microrelay with resistance 12V-30A/10A
643452
Not Available
11
TELERUTTORE 12V-80A
58115R
$9,18 Unit Price incl. VAT

Find the detailed Remote control switches - Battery - Horn GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
