Flywheel magneto cover - Oil filter for GILERA PIAGGIO VESPA GTS ie ABS from 2014

Brakes pipes - Calipers (ABS)

Driving mirror/s

Flywheel magneto cover - Oil filter

1

COPERCHIO L.VOLANO COMPL. X RIC.

8798315

$256,68 Unit Price incl. VAT

2

GIRANTE POMPA ACQUA

844730

$3,01 Unit Price incl. VAT

3

ANELLO DI TENUTA POMPA ACQUA

82991R

$24,39 Unit Price incl. VAT

4

ALBERO POMPA ACQUA COMPLETO

8447595

$54,95 Unit Price incl. VAT

5

ANELLO DI TENUTA 20.30.5

82897R

$4,36 Unit Price incl. VAT

6

GIUNTO TRASCINAMENTO POMPA ACQUA

842389

$5,64 Unit Price incl. VAT

7

TAPPO FASATURA X RIC.

8290405

$10,28 Unit Price incl. VAT

8

O-ring

479986

Not Available

9

PIASTRINA SONDA LAMBDA

847716

$5,38 Unit Price incl. VAT

10

VITE ESAGONALE FLANGIATA M6X112,5

B016807

$1,26 Unit Price incl. VAT

11

PIASTRINA RITEGNO CAVI

847717

$3,65 Unit Price incl. VAT

12

VITE A TESTA ESAGONALE FLANGIATA

484123

$0,16 Unit Price incl. VAT

13

RONDELLA ELASTICA BOMBATA

012528

$0,34 Unit Price incl. VAT

14

VITE (M6X35)

414838

$0,67 Unit Price incl. VAT

15

GUARNIZIONE COP.VOLANO

840504

$2,91 Unit Price incl. VAT

16

TAPPO FILTRO OLIO

826165

$5,88 Unit Price incl. VAT

17

GUARNIZIONE OR 31,47x1,78

285536

$0,92 Unit Price incl. VAT

18

FILTRO OLIO ASPIRAZIONE COMPL.

843568

$14,92 Unit Price incl. VAT

19

ANELLO OR 20,35X1,78

288474

$0,08 Unit Price incl. VAT

20

Oil filter

82635R

$12,36 Unit Price incl. VAT

21

VITE SPECIALE FILTRO OLIO

840507

$10,25 Unit Price incl. VAT

22

Oil pressure sensor

641541

Not Available

23

ROSETTA (16X10.5X2.5)

486075

$1,58 Unit Price incl. VAT

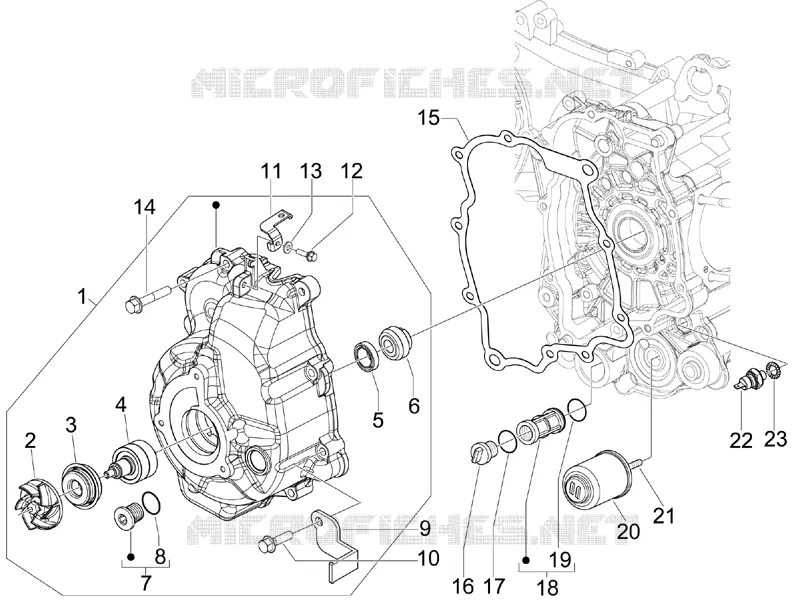

Find the detailed Flywheel magneto cover - Oil filter GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
