1
Engine displacement
300
2
Model
GTS
3
Year
2014
4
Trim
GTS ie ABS
5
Parts Catalog
Cooler pump
6
Parts Diagram
Parts Catalog
Anti-percolation system
by
Head unit - Valve
Cooler pump
1
2
3
4
5
6
6
7
7
8
9
1
COPERCHIO POMPA "H2O" CON P.I.
877528
$14,43 Unit Price incl. VAT
2
VITE TCCIC M5X22 (5.8)
828662
$0,25 Unit Price incl. VAT
3
O.R. COPERCHIO POMPA
485080
$0,72 Unit Price incl. VAT
4
TUBO ACQUA "BY-PASS"
878940
$5,38 Unit Price incl. VAT
5
TUBO MANDATA AL CILINDRO
878626
$5,38 Unit Price incl. VAT
6
FASCETTA STRINGITUBO (D.30,1 S.0,6 L.7)
CM001922
$3,65 Unit Price incl. VAT
7
FASCETTA STRINGITUBO
CM001904
$0,75 Unit Price incl. VAT
8
MOLLA TRASCINAMENTO GIUNTO
842390
$0,48 Unit Price incl. VAT
9
FASCETTA A STRAPPO
145298
$0,08 Unit Price incl. VAT

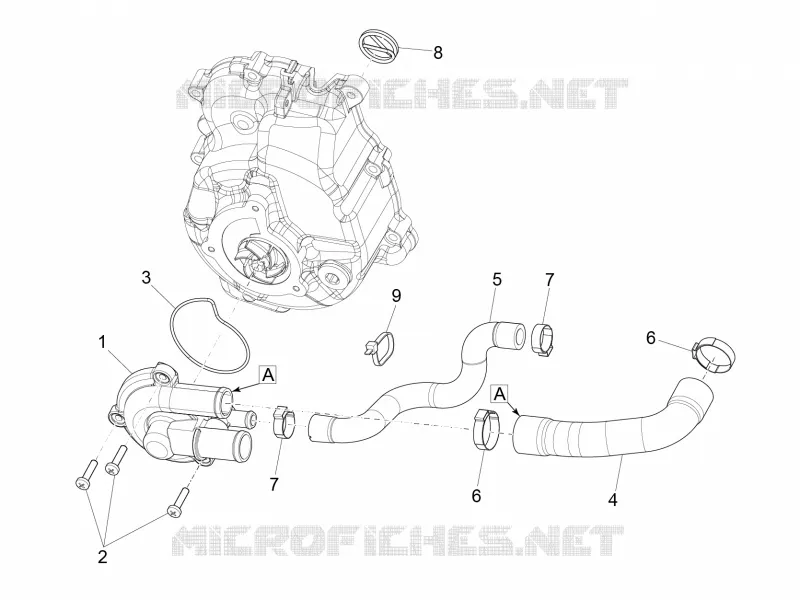

Find the detailed Cooler pump GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
