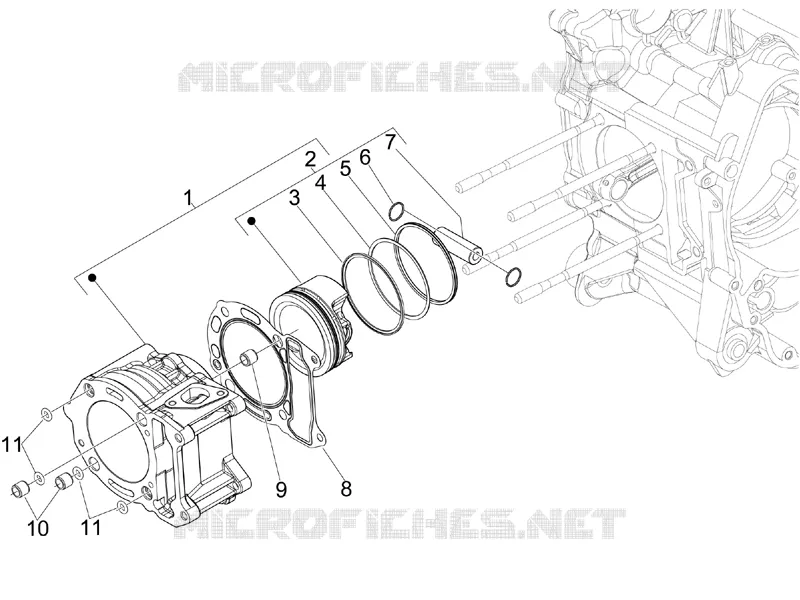

Cylinder-piston-wrist pin unit
1
2
3
4
5
6
7
8
9
10
11
11
1
Cyl.pist.-wrist pin assy unit
876457
$215,47 Unit Price incl. VAT
2
Piston + piston pin Cat.1
8764580001
$53,36 Unit Price incl. VAT
2
Piston + piston pin Cat.4
8764580004
$53,36 Unit Price incl. VAT
2
Piston + piston pin Cat.3
8764580003
$57,33 Unit Price incl. VAT
2
Piston + piston pin Cat.2
8764580002
$57,33 Unit Price incl. VAT
3
Compression ring Ø 75x1,5
874958
Not Available
4
Oil scraper ring Ø 75x1,2
874960
$6,11 Unit Price incl. VAT
5
Oil scraper ring Ø 75x2,5
876367
Not Available
6
Snap ring
875096
$0,19 Unit Price incl. VAT
7
Piston pin
875005
$10,82 Unit Price incl. VAT
8
Cylinder base gasket 0,8 mm
875114
$4,62 Unit Price incl. VAT
8
Cylinder base gasket 0,6 mm
875113
$4,88 Unit Price incl. VAT
8
Cylinder base gasket 0,4 mm
875112
$4,04 Unit Price incl. VAT
9
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
10
Locating dowel Ø11x10
478115
$0,24 Unit Price incl. VAT
11
O-ring
478184
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
