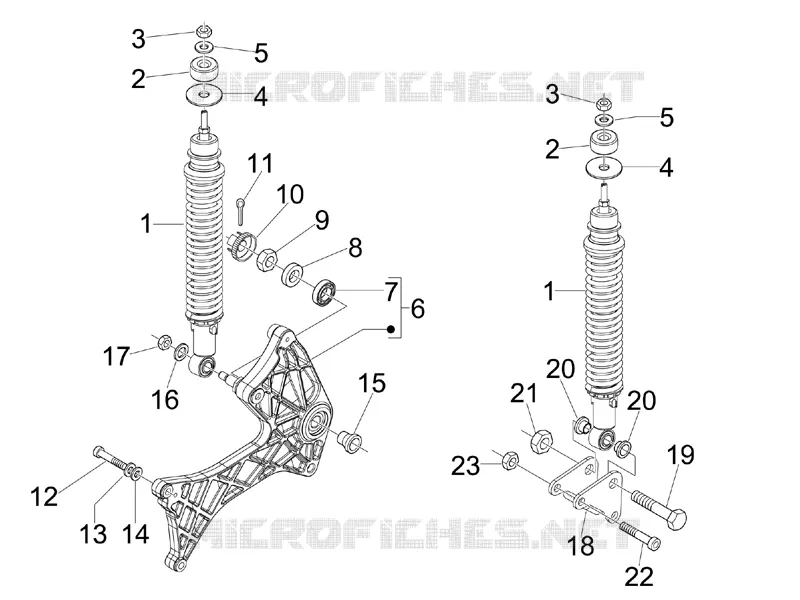

Rear suspension - Shock absorber/s
1
1
2
2
3
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
1
Complete rear shock absorber
58503R
Not Available
2
Upper buffer
178150
$0,92 Unit Price incl. VAT
3
Nut M8
021108
$0,25 Unit Price incl. VAT
4
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
5
Flat washer
267038
$0,67 Unit Price incl. VAT
6
Right arm
599593
Not Available
7
Ball bearing
82545R
$12,11 Unit Price incl. VAT
8
Spacer
597528
$1,51 Unit Price incl. VAT
9
Nut M16x13
563728
$1,42 Unit Price incl. VAT
10
Nut hold cap
194423
$0,48 Unit Price incl. VAT
11
Split pin
012789
$0,16 Unit Price incl. VAT
12
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
13
Spring washer
709047
$0,08 Unit Price incl. VAT
14
Washer
013776
$0,34 Unit Price incl. VAT
15
Wheel spacer
848039
$18,12 Unit Price incl. VAT
16
Washer
013962
$2,95 Unit Price incl. VAT
17
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
18
plate
598143
$5,38 Unit Price incl. VAT
19
Screw w/ flange M10
268158
$1,26 Unit Price incl. VAT
20
Bush
597149
$3,65 Unit Price incl. VAT
21
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
22
Hex socket screw M8x50
844483
$0,67 Unit Price incl. VAT
23
Self locking nut M8
195483
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
