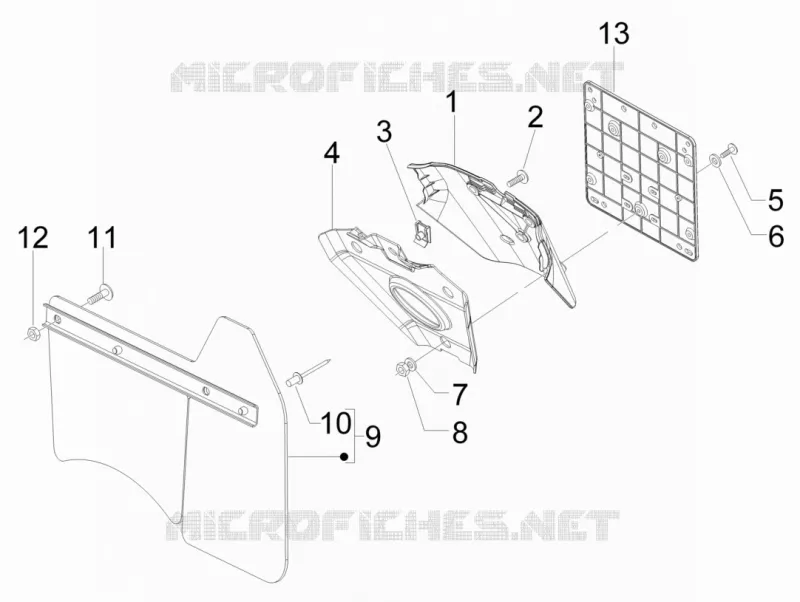

Rear cover - Splash guard
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Rear protection
62282400YR1
$128,80 Unit Price incl. VAT
1
Rear protection
62282400HA
$128,80 Unit Price incl. VAT
1
Rear protection
62282400EU
$128,80 Unit Price incl. VAT
1
Rear protection
62282400R7
$128,80 Unit Price incl. VAT
1
Rear protection
62282400XN2
$128,80 Unit Price incl. VAT
1
Rear protection
62282400GV
$128,80 Unit Price incl. VAT
1
Rear protection
622824
$102,98 Unit Price incl. VAT
1
Rear protection
62282400DE
$128,80 Unit Price incl. VAT
2
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
3
Spring plate M6
254485
$0,34 Unit Price incl. VAT
4
Rear protection support
623563
Not Available
5
screw M4x14
018591
Not Available
6
Flat washer 4,2x7,6x0,9
016404
$0,42 Unit Price incl. VAT
7
Flat washer 4,2x12x1
013763
$0,08 Unit Price incl. VAT
8
Nut M4
020104
$1,26 Unit Price incl. VAT
9
Splash guard
620236
$17,07 Unit Price incl. VAT
10
Rivet
567642
$1,84 Unit Price incl. VAT
11
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
12
Self locking nut M6
288245
$0,16 Unit Price incl. VAT
13
Number plate holder
582691
$4,96 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
