1
Engine displacement
125
2
Model
GRANTURISMO
3
Year
2005
4
Trim
Granturismo L Potenziato
5
Parts Catalog

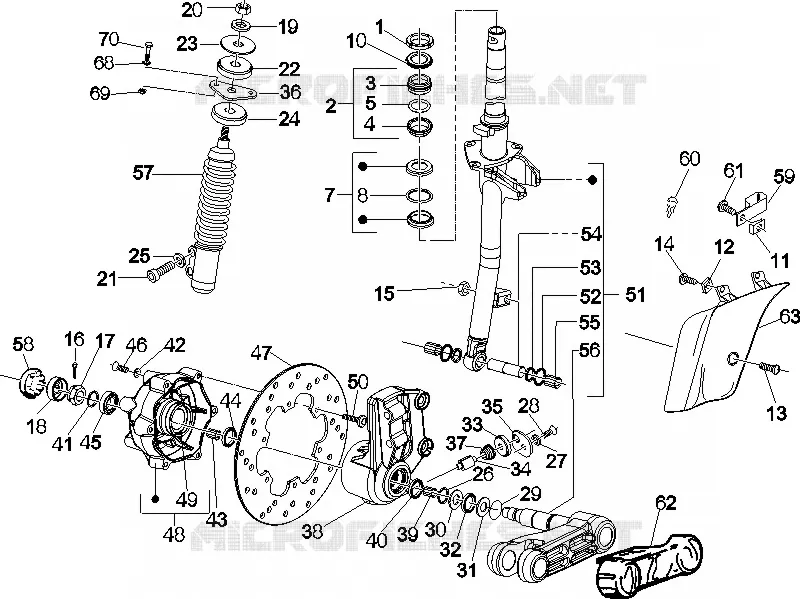

Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Swinging arm
by
Rear suspension - Shock absorber/s
Fork/steering tube - Steering bearing unit
1
2
3
4
5
7
8
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
50
51
52
53
54
55
56
57
58
59
60
61
62
63
68
69
70
1
Steering tube ring nut
011109
Not Available
2
Upper thrust ring
CM061303
$65,02 Unit Price incl. VAT
3
Ring nut
055986
Not Available
4
Upper seat
056641
Not Available
5
Ball cage
077024
Not Available
6
Missing description
000000
Not Available
7
Steering bearing assy.
56003R
Not Available
7
Lower steering bearing
CM061304
Not Available
8
Ball cage
077023
Not Available
9
Missing description
000000
Not Available
10
Steering security plate
582787
$3,65 Unit Price incl. VAT
11
Spring plate
CM017410
$0,34 Unit Price incl. VAT
12
Spring plate
CM017410
$0,34 Unit Price incl. VAT
13
Metric screw TBC
259348
$2,99 Unit Price incl. VAT
14
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
15
Nut
969224
$0,42 Unit Price incl. VAT
16
Split pin
012789
$0,16 Unit Price incl. VAT
17
Nut
021114
$0,51 Unit Price incl. VAT
18
Cap
177609
$2,19 Unit Price incl. VAT
19
Washer
012535
$0,08 Unit Price incl. VAT
20
Nut
021210
$0,16 Unit Price incl. VAT
21
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
22
Pad
174085
$1,18 Unit Price incl. VAT
23
Washer
174088
$0,84 Unit Price incl. VAT
24
Pad
174874
$2,36 Unit Price incl. VAT
25
Spring washer
709047
$0,08 Unit Price incl. VAT
26
Circlip
006422
$0,16 Unit Price incl. VAT
27
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
28
screw M5x16
031058
$2,95 Unit Price incl. VAT
29
O-ring
177408
$0,08 Unit Price incl. VAT
30
Washer
177414
$0,75 Unit Price incl. VAT
31
Washer
177445
$0,34 Unit Price incl. VAT
32
Ring
177521
$0,66 Unit Price incl. VAT
33
Pad
266841
$5,53 Unit Price incl. VAT
34
Pinion
267819
$7,69 Unit Price incl. VAT
35
Plate
269118
$4,82 Unit Price incl. VAT
36
Bracket
273693
$7,23 Unit Price incl. VAT
37
Maintenance
564053
Not Available
38
Maintenance
597758
$59,64 Unit Price incl. VAT
39
Drawn cap
177436
$9,18 Unit Price incl. VAT
40
Ring
177494
$1,85 Unit Price incl. VAT
41
Snap ring
006635
$0,25 Unit Price incl. VAT
42
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
43
Roller cage
177442
$4,04 Unit Price incl. VAT
44
Gasket ring
177443
$1,77 Unit Price incl. VAT
45
Bearing
177610
$8,41 Unit Price incl. VAT
46
Hex socket screw M6x20
271147
$0,17 Unit Price incl. VAT
47
Brake disc
564573
Not Available
48
Hub
598654
$218,41 Unit Price incl. VAT
50
screw
601031
Not Available
51
Steering column tube
6009605
Not Available
52
Gasket
006731
$0,34 Unit Price incl. VAT
53
Gasket ring
119219
$0,67 Unit Price incl. VAT
54
Piston pin
177451
$3,03 Unit Price incl. VAT
55
Roller cage
198513
$5,97 Unit Price incl. VAT
56
Suspension arm
56140R5
Not Available
57
Shock absorber
56192R
Not Available
57
SHOCK ABSORBER
56263R
Not Available
57
Complete front shock absorber
56286R
$85,05 Unit Price incl. VAT
58
Cover
092517
Not Available
59
Hose clamp
271477
$3,65 Unit Price incl. VAT
60
Elastic spring
231590
$0,25 Unit Price incl. VAT
61
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
62
Front suspension arm cover
561433
Not Available
63
SUSPENSION COVER (FRONT)
59861500BM
$54,27 Unit Price incl. VAT
63
SUSPENSION COVER (FRONT)
5986150087
Not Available
63
Front suspension cover
59861500ND
Not Available
63
Front suspension cover
598615
Not Available
63
Front suspension cover
59861500DE
$54,27 Unit Price incl. VAT
63
Tyre
59861500D9
$54,27 Unit Price incl. VAT
63
Tyre
59861500VC
Not Available
63
Front suspension cover
59861500F2
$54,27 Unit Price incl. VAT
63
Front suspension arm cover
598615000C
Not Available
63
SUSPENSION COVER (FRONT)
59861500F3
$54,27 Unit Price incl. VAT
63
Tyre
59861500EB
$54,27 Unit Price incl. VAT
68
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
69
Nut M8x6,5
020108
$0,08 Unit Price incl. VAT
70
Hex screw M8x22
031119
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
