1
Engine displacement
125
2
Model
GRANTURISMO
3
Year
2005
4
Trim
Granturismo L Potenziato
5
Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Supply system
by
Handlebars coverages

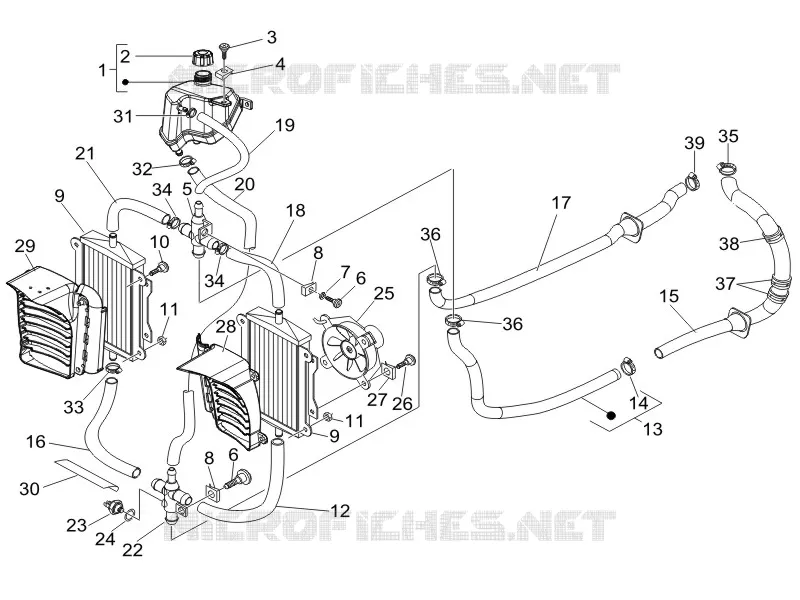

Cooling system
1
2
3
4
5
6
6
7
8
8
9
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
34
35
36
36
37
38
39
1
Coolant tank
623674
Not Available
2
Expansion tank plug
623673
$15,97 Unit Price incl. VAT
3
screw
257404
$2,95 Unit Price incl. VAT
4
Spring plate M6
254485
$0,34 Unit Price incl. VAT
5
Joint
577195
$8,16 Unit Price incl. VAT
6
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
7
Spring washer
709047
$0,08 Unit Price incl. VAT
8
Spring plate M6
254485
$0,34 Unit Price incl. VAT
9
Water cooler
577183
$50,73 Unit Price incl. VAT
10
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
11
Self locking nut M6
241936
$0,08 Unit Price incl. VAT
12
Lower joint-left radiator connection pipe
57313R
$26,74 Unit Price incl. VAT
13
HOSE (ENGINE DELIVER/FRONT)
57318R
Not Available
14
Hose clamp
CM001908
$3,65 Unit Price incl. VAT
15
TUBE
57320R
Not Available
16
Lower joint-right radiator connection pipe
577201
$26,74 Unit Price incl. VAT
17
pipe
577205
Not Available
18
pipe
577384
$8,91 Unit Price incl. VAT
19
pipe
577433
$5,38 Unit Price incl. VAT
20
pipe
577436
Not Available
21
pipe
623013
$5,38 Unit Price incl. VAT
22
Joint
577196
Not Available
23
Thermal switch
584676
$25,98 Unit Price incl. VAT
24
Copper gasket
168077
$3,65 Unit Price incl. VAT
25
Fan engine
584669
$76,39 Unit Price incl. VAT
26
Screw M6x16
272836
$3,70 Unit Price incl. VAT
27
Spring plate M6
254485
$0,34 Unit Price incl. VAT
28
Left air duct
577187
$15,22 Unit Price incl. VAT
29
Air deflector
577184
$15,22 Unit Price incl. VAT
30
Guard
580160
Not Available
31
Hose clamp
CM001903
$0,84 Unit Price incl. VAT
32
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
33
Hose clamp
CM001905
$1,38 Unit Price incl. VAT
34
Hose clamp
CM001907
$0,84 Unit Price incl. VAT
35
Hose clamp
CM001908
$3,65 Unit Price incl. VAT
36
Hose clamp
CM001915
$1,03 Unit Price incl. VAT
37
Pipes/cables retainer spring
CM006903
$1,43 Unit Price incl. VAT
38
Spring
CM017802
Not Available
39
Hose clamp
CM001922
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
