1
Engine displacement
125
2
Model
GRANTURISMO
3
Year
2005
4
Trim
Granturismo L Potenziato
5
Parts Catalog

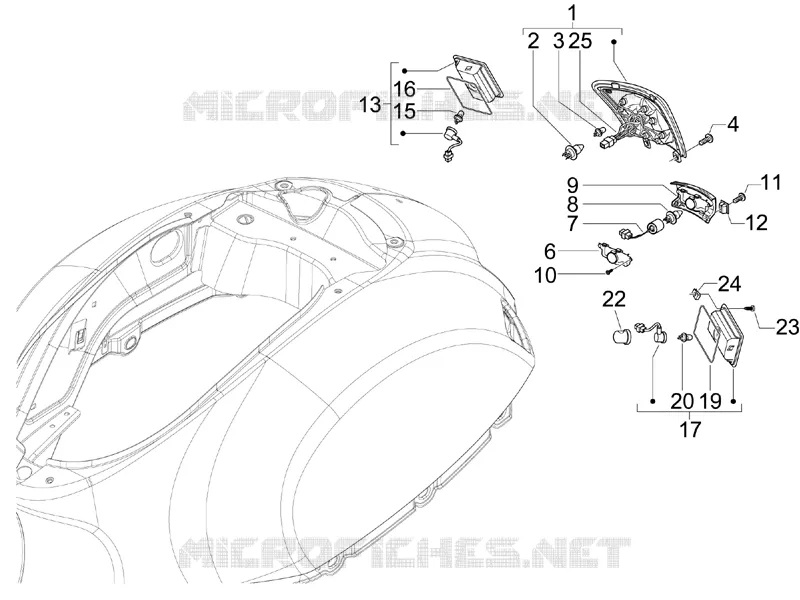

Rear headlamps - Turn signal lamps
6
Parts Diagram
Parts Catalog
Front headlamps - Turn signal lamps
by
Remote control switches - Battery - Horn
Rear headlamps - Turn signal lamps
1
2
3
4
6
7
8
9
10
11
12
13
15
16
17
19
20
22
23
24
1
Headlight
639181
Not Available
2
Lamp 12V-5W
292022
Not Available
3
Glass lamp 12v-2,3w
581056
Not Available
4
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
6
Number plate lamp
638702
Not Available
7
Cable harness
583812
$18,44 Unit Price incl. VAT
8
Lamp 12V-5W
292022
Not Available
9
License plate light small cover
63870100DE
$81,46 Unit Price incl. VAT
9
License plate light small cover
63870100F2
$81,46 Unit Price incl. VAT
9
License plate light small cover
63870100BM
$81,46 Unit Price incl. VAT
9
License plate light small cover
63870100D9
$81,46 Unit Price incl. VAT
9
License plate light small cover
63870100ND
$81,46 Unit Price incl. VAT
9
License plate light small cover
63870100VC
$81,46 Unit Price incl. VAT
9
License plate light small cover
6387010087
$81,46 Unit Price incl. VAT
9
License plate light small cover
63870100F3
$81,46 Unit Price incl. VAT
9
License plate light small cover
638701
Not Available
9
License plate light small cover
63870100EB
$81,46 Unit Price incl. VAT
10
screw TBC 3,6x12
018603
$2,95 Unit Price incl. VAT
11
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
12
Expansion plug
199190
$2,95 Unit Price incl. VAT
13
Turn signal lamp DX
638717
Not Available
13
Right rear turn indicator
584972
$59,40 Unit Price incl. VAT
15
Lamp 12V-10W
181746
$3,28 Unit Price incl. VAT
15
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
16
RH gasket
584679
$4,82 Unit Price incl. VAT
17
Left rear turn indicator
584973
$59,40 Unit Price incl. VAT
17
Turn signal lamp
638718
Not Available
19
LH gasket
584678
$4,82 Unit Price incl. VAT
20
Lamp 12V-10W
181746
$3,28 Unit Price incl. VAT
20
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
22
Cap
250522
$4,82 Unit Price incl. VAT
23
Self-tap screw M4,2x19
008457
$2,99 Unit Price incl. VAT
24
Plate
CM017406
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
