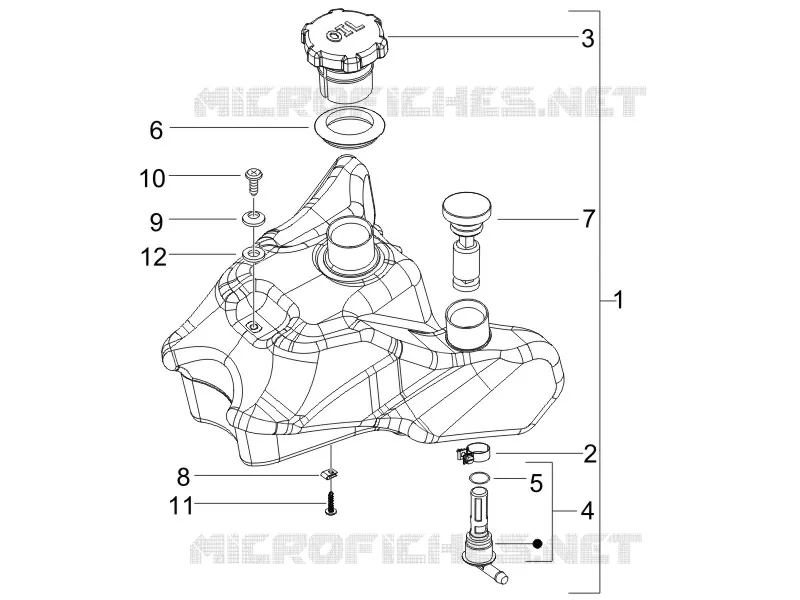

Oil tank
1
2
3
4
5
6
7
8
9
10
11
12
1
Oil tank
949433
Not Available
2
Hose clamp
577557
Not Available
3
Oil ins.pl.
259829
$6,30 Unit Price incl. VAT
4
Complete coupling
574362
$5,00 Unit Price incl. VAT
5
Gasket
196868
$3,70 Unit Price incl. VAT
6
Gasket
295522
$4,82 Unit Price incl. VAT
7
Oil level indicator
639694
$17,69 Unit Price incl. VAT
8
Spring plate
CM017410
$0,34 Unit Price incl. VAT
9
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
10
Self-tapping screw
018623
Not Available
11
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
12
Flat washer 5,3x14x1
060201
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
