by

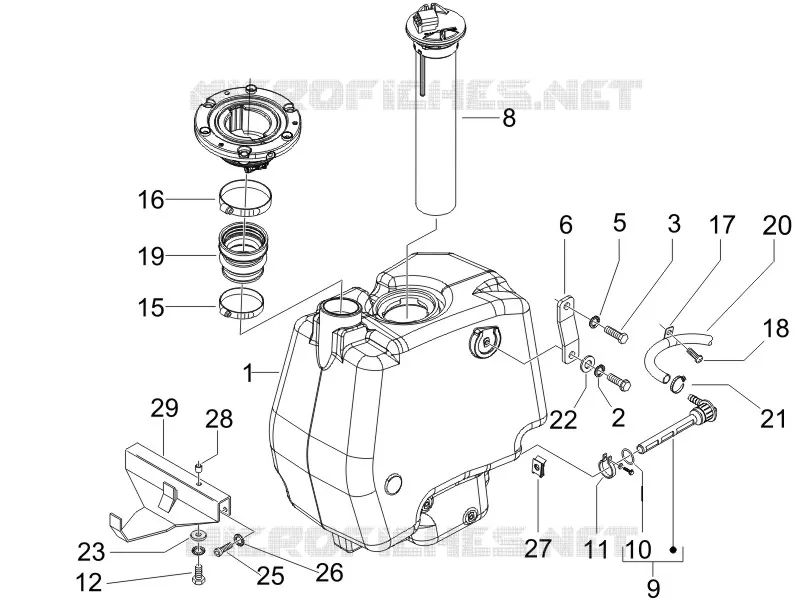

Fuel tank
1
2
3
5
6
8
9
10
11
12
15
16
17
18
19
20
21
22
23
25
26
27
28
29
1
Fuel tank
949457
$67,23 Unit Price incl. VAT
2
Washer 5,3x10x0
012532
$0,67 Unit Price incl. VAT
3
Screw m6x12
031086
$0,08 Unit Price incl. VAT
5
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
6
Fuel tank bracket
624090
$1,05 Unit Price incl. VAT
8
Indicator fuel level
CM025707
$86,99 Unit Price incl. VAT
9
Complete coupling
574358
Not Available
10
Gasket
196868
$3,70 Unit Price incl. VAT
11
Hose clamp
577557
Not Available
12
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
15
Hose clamp
CM001919
$0,77 Unit Price incl. VAT
16
Hose clamp
CM001920
$3,65 Unit Price incl. VAT
17
Hose clamp
294013
$0,60 Unit Price incl. VAT
18
screw M6x35
414838
$0,67 Unit Price incl. VAT
19
Hose
959230
Not Available
20
Depression pipe Ø5x10
CM001412
Not Available
21
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
22
Flat washer 5,3x14x1
060201
Not Available
23
Washer 6,2x18x2
013950
$0,34 Unit Price incl. VAT
25
Hex socket screw
122675
$2,99 Unit Price incl. VAT
26
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
27
Spring plate M6
254485
$0,34 Unit Price incl. VAT
28
Spacer
623162
$0,50 Unit Price incl. VAT
29
Tank support bracket
624295
$4,33 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
