by

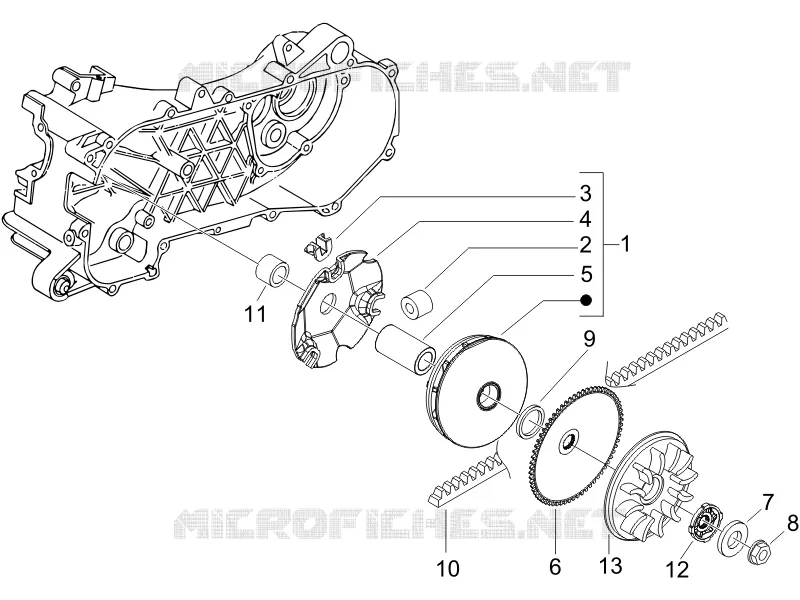

Driving pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Half-pulley assy., driving
CM110301
$75,60 Unit Price incl. VAT
2
Rollers kit
CM1102025
$21,20 Unit Price incl. VAT
3
Sliding block
289931
$4,82 Unit Price incl. VAT
4
Roller contrast
480227
$12,88 Unit Price incl. VAT
5
Spacer
480230
$15,54 Unit Price incl. VAT
6
Fixed driving half pulley
479561
$12,19 Unit Price incl. VAT
7
Washer
265300
$2,99 Unit Price incl. VAT
8
Flanged nut M10x1,25
289519
$0,56 Unit Price incl. VAT
9
Spacer
CM100615
$3,65 Unit Price incl. VAT
10
V-belt
436864
$13,99 Unit Price incl. VAT
11
Spacer
479495
$1,44 Unit Price incl. VAT
12
Teethed bush
877075
Not Available
13
Fan
845611
$2,02 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
