by

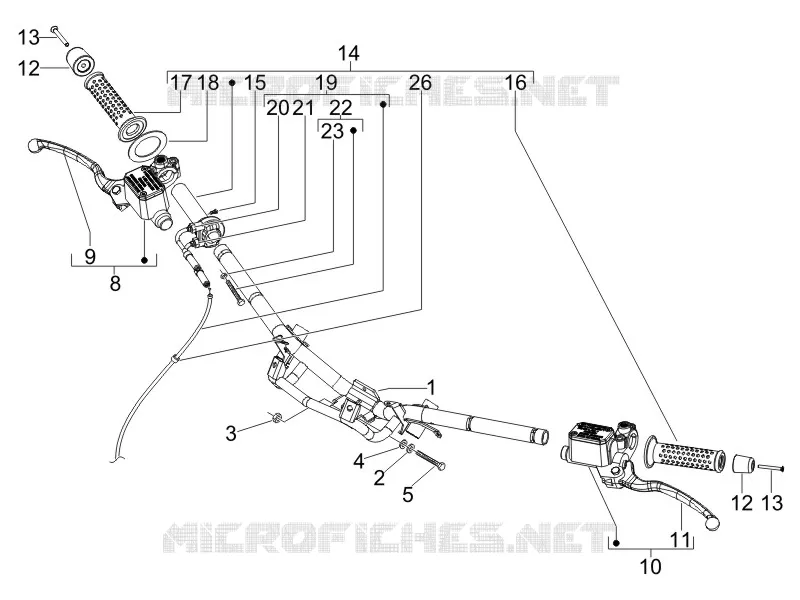

Handlebars - Master cil.
1
2
3
4
5
8
9
10
11
12
12
13
13
14
15
16
17
18
19
20
21
22
23
26
1
Handlebar with U.P.
6550825
$129,84 Unit Price incl. VAT
2
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
3
Nut M10
015330
$0,25 Unit Price incl. VAT
4
Flat washer
178790
$0,51 Unit Price incl. VAT
5
Hex socket screw
655554
$3,70 Unit Price incl. VAT
5
screw
223605
Not Available
8
Front brakes pump assembly (Heng Tong)
CM074901
$125,55 Unit Price incl. VAT
9
Brake lever
646833
Not Available
10
Rear brake lever hydraulic pump
56288R
Not Available
11
Brake lever
646833
Not Available
12
End terminal
654515
$8,91 Unit Price incl. VAT
13
screw
576836
$3,03 Unit Price incl. VAT
14
Throttle control sleeve assembly
CM060970
$36,34 Unit Price incl. VAT
15
Screw with bushing
123394
$3,70 Unit Price incl. VAT
16
Grip, l.h.
271452
$13,37 Unit Price incl. VAT
17
Grip, r.h.
271453
$13,37 Unit Price incl. VAT
18
Ring 38,3x27x1,2
562923
$2,99 Unit Price incl. VAT
19
Gas lever transmission
949415
$27,77 Unit Price incl. VAT
20
Nut
002613
$2,25 Unit Price incl. VAT
21
Nut
020105
$0,25 Unit Price incl. VAT
22
Adjuster screw
269145
$1,30 Unit Price incl. VAT
23
Nut M6
020206
$0,08 Unit Price incl. VAT
26
Fairlead
563989
$0,32 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
