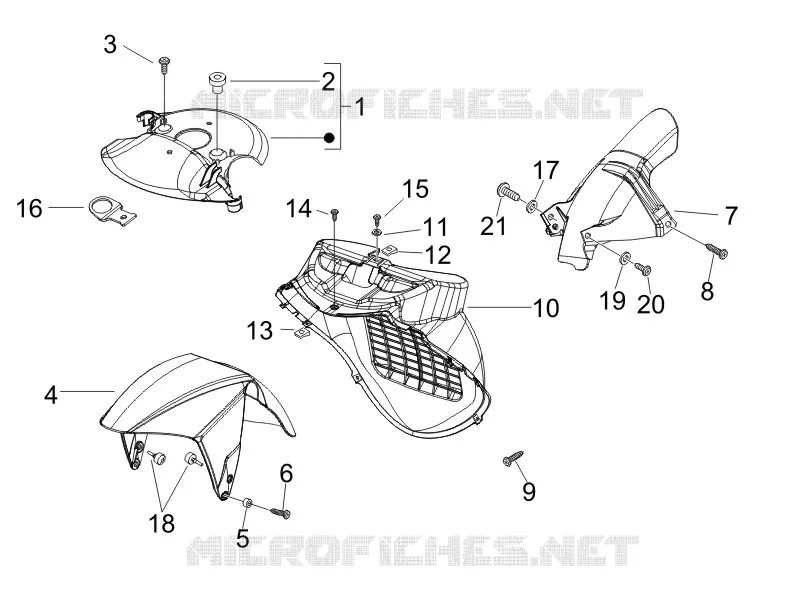

Wheel huosing - Mudguard
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
Front mudguard (Susp. Protection)
949454
Not Available
2
Knurled bushing
258536
Not Available
3
Hex screw M6x18
031089
$2,99 Unit Price incl. VAT
4
Front mudguard
64759000BR
Not Available
4
Front mudguard
647590
$28,96 Unit Price incl. VAT
4
Front mudguard
64759000R7
Not Available
4
Front mudguard
64759000NI
Not Available
4
Front mudguard
64759000EV
Not Available
4
Front mudguard
6475900090
Not Available
5
Spacer
259828
$3,65 Unit Price incl. VAT
6
Screw M6x16
272836
$3,70 Unit Price incl. VAT
7
Rear splash guard
624506
Not Available
8
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
9
screw M6x35
414838
$0,67 Unit Price incl. VAT
10
Wheel compartment
624425000G
Not Available
10
Wheel compartment
624425
Not Available
10
Wheel compartment
624425000C
$19,27 Unit Price incl. VAT
11
Flat washer 5,2x18x1,5
016686
$2,25 Unit Price incl. VAT
12
Spring plate M5
248419
$0,67 Unit Price incl. VAT
13
Spring plate M6
254485
$0,34 Unit Price incl. VAT
14
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
15
screw
834065
$0,08 Unit Price incl. VAT
16
Front brake support
949393
$0,93 Unit Price incl. VAT
17
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
18
Pad
566546
$0,22 Unit Price incl. VAT
19
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
20
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
21
Screw w/ flange M6x30
289731
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
