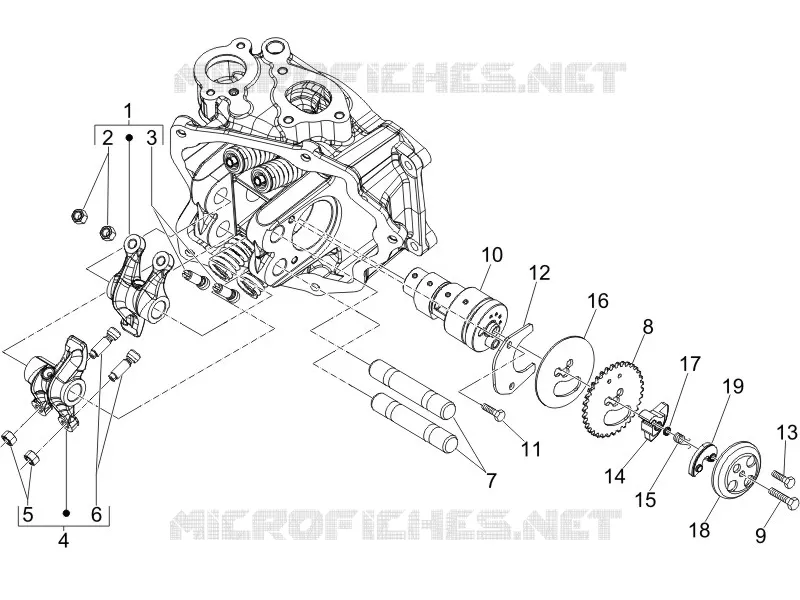

Rocking levers support unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Complete intake side rocker
4847395
$39,03 Unit Price incl. VAT
2
Nut
484819
$0,24 Unit Price incl. VAT
3
Adjuster screw
82817R
$8,01 Unit Price incl. VAT
4
Rocker arm assy., exhaust
4847405
$39,03 Unit Price incl. VAT
5
Nut
484819
$0,24 Unit Price incl. VAT
6
Adjuster screw
82817R
$8,01 Unit Price incl. VAT
7
Rocker arms axis
486343
$2,77 Unit Price incl. VAT
8
Timing system gear
486336
$3,55 Unit Price incl. VAT
8
Timing system gear
877771
$11,77 Unit Price incl. VAT
9
screw M6x35
414838
$0,67 Unit Price incl. VAT
10
Camshaft
8459345
$379,64 Unit Price incl. VAT
11
Screw w/ flange
484123
$0,16 Unit Price incl. VAT
12
Camshaft plate
877309
$1,41 Unit Price incl. VAT
12
Camshaft plate
833308
Not Available
13
Hex socket screw M5x30
018538
Not Available
14
Decompressor counterweight
880650
$4,82 Unit Price incl. VAT
14
Decompressor counterweight
486331
Not Available
15
Spring
486974
$0,15 Unit Price incl. VAT
16
Washer
877310
$3,65 Unit Price incl. VAT
16
Washer
487832
Not Available
17
Gasket
487833
$0,24 Unit Price incl. VAT
18
Decompression bell
880651
$7,94 Unit Price incl. VAT
18
Decompression bell
826396
$3,93 Unit Price incl. VAT
19
Decompression counterweight
8291395
$15,46 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
