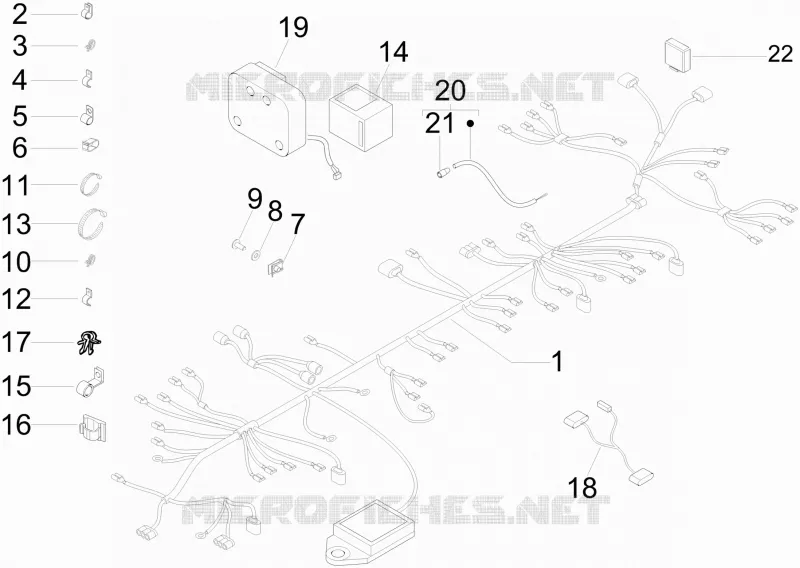

Main cable harness for Nexus E3 from 2011

Main cable harness

1

Cable harness

640966

Not Available

2

Non return spring

CM006902

$0,92 Unit Price incl. VAT

3

Pipes/cables retainer spring

CM006903

$1,43 Unit Price incl. VAT

4

Non return spring l=27

CM006904

$0,25 Unit Price incl. VAT

5

Non return spring L=12

CM006905

$1,35 Unit Price incl. VAT

6

Spring

CM013201

$0,40 Unit Price incl. VAT

7

Spring plate

CM017405

$3,65 Unit Price incl. VAT

8

Flat washer 4,2x12x1

013763

$0,08 Unit Price incl. VAT

9

screw

015728

$2,95 Unit Price incl. VAT

10

Non return spring L=23

CM006908

$0,50 Unit Price incl. VAT

11

Lock-strap L=180mm

145298

$0,08 Unit Price incl. VAT

12

Hose clamp

564014

$0,17 Unit Price incl. VAT

13

Lock-strap L=277

257134

$0,25 Unit Price incl. VAT

14

Flexible support

291017

$4,88 Unit Price incl. VAT

15

Hose clamp

298729

$0,34 Unit Price incl. VAT

16

Spring clamp

577594

$0,42 Unit Price incl. VAT

17

Non return spring

582153

$5,38 Unit Price incl. VAT

18

CABLE HARNESS

584484

Not Available

19

Fall sensor

584509

$26,13 Unit Price incl. VAT

20

CABLE HARNESS

639763

$11,28 Unit Price incl. VAT

21

Cap

582172

Not Available

22

ELECTRIC CONTROLS MANAGEMENT DEVICE

640963

Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
