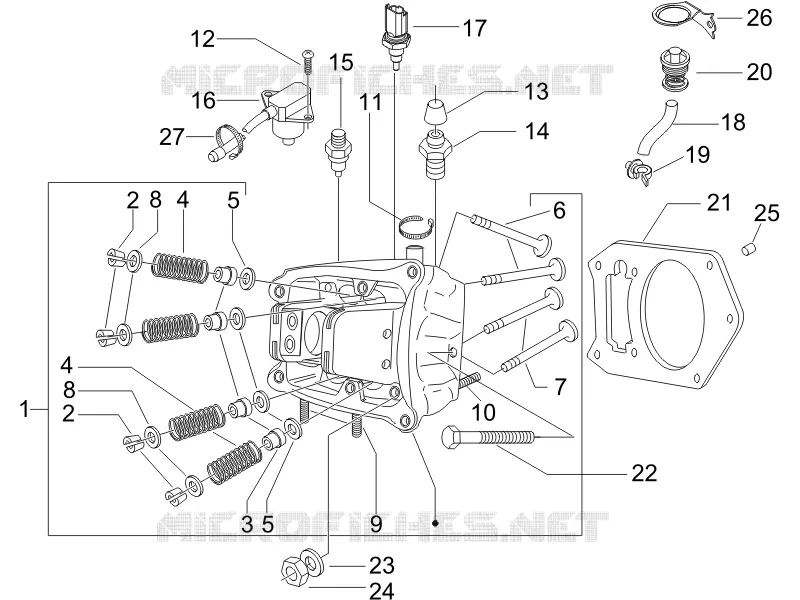

Head unit - Valve for Nexus E3 from 2011

Head unit - Valve

1

Cylinder head assy.

847793

Not Available

1

Cylinder head assembly

82987R1

Not Available

1

Cylinder head assembly

82913R

Not Available

2

Valve half-cone

285846

$2,94 Unit Price incl. VAT

3

Valve gasket ring

436438

$1,34 Unit Price incl. VAT

4

Valve spring

826103

$2,67 Unit Price incl. VAT

5

Lower cup

826256

$0,86 Unit Price incl. VAT

6

Exhaust valve

828321

$20,54 Unit Price incl. VAT

7

Intake valve

828322

$29,24 Unit Price incl. VAT

8

Upper cup

828396

$118,11 Unit Price incl. VAT

9

Exhaust pipe stud bolt M8x3x46

827018

Not Available

10

Stud bolt M6

827953

$3,21 Unit Price incl. VAT

11

Hose clamp

CM001915

$1,03 Unit Price incl. VAT

12

Screw w/ flange M6x16

434541

$0,09 Unit Price incl. VAT

13

Bleed valve cap

063435

$0,34 Unit Price incl. VAT

14

Bleed screw

430045

$2,40 Unit Price incl. VAT

15

Engine speed sensor

638991

Not Available

16

Encoder sensor

832029

Not Available

17

Temperature gauge

640485

Not Available

18

Thermostat-head pipe

840826

$10,00 Unit Price incl. VAT

19

Elastic spring

843603

$5,38 Unit Price incl. VAT

20

Thermostat

848140

$79,10 Unit Price incl. VAT

21

Cylinder head gasket

830008

$21,98 Unit Price incl. VAT

22

screw M6x90

830278

$2,95 Unit Price incl. VAT

23

High hexagonal nut

832783

$2,83 Unit Price incl. VAT

24

Flat washer

178790

$0,51 Unit Price incl. VAT

25

Pin 11,8X10

825597

$0,94 Unit Price incl. VAT

26

Bracket

840062

$2,83 Unit Price incl. VAT

27

Lock-strap L=180mm

145298

$0,08 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
