Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil for Nexus E3 from 2011

Rear cover - Splash guard

Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil

1

Voltage regulator (SHIND.)

639110

$314,55 Unit Price incl. VAT

1

Voltage regulator

58086R

Not Available

2

Screw w/ flange

828863

$0,09 Unit Price incl. VAT

3

Flat washer 16x6,5x1,5

013880

$0,08 Unit Price incl. VAT

4

screw

834065

$0,08 Unit Price incl. VAT

5

Spring washer 8,5x5,1x1,5

016405

$0,08 Unit Price incl. VAT

6

Spring washer 6,4x11,8x1

016406

$0,34 Unit Price incl. VAT

7

Screw M6x16

272836

$3,70 Unit Price incl. VAT

8

Washer

078307

$0,17 Unit Price incl. VAT

9

HT coil

58120R

$65,76 Unit Price incl. VAT

10

Bracket for HT coil

639880

$8,91 Unit Price incl. VAT

11

Protection collar

436919

$1,45 Unit Price incl. VAT

12

End cap

015014

$4,82 Unit Price incl. VAT

13

Insulating cap

071671

$1,29 Unit Price incl. VAT

14

H.V. cable

080341

$5,89 Unit Price incl. VAT

15

Bracket

584772

$2,52 Unit Price incl. VAT

16

Electro-actuator control unit

641288

$273,58 Unit Price incl. VAT

17

Decoder

829121

Not Available

18

Voltage regulator support

640615

Not Available

19

screw M3x20

583236

$3,70 Unit Price incl. VAT

20

Washer 3.2x5.7x0.9

012554

$1,56 Unit Price incl. VAT

21

Nut M 3

020003

$2,27 Unit Price incl. VAT

22

C.D.I. BRACKET

640502

Not Available

23

Screw w/ flange M6x16

434541

$0,09 Unit Price incl. VAT

24

screw M5x21

015856

$0,16 Unit Price incl. VAT

25

Spring washer 8,5x5,1x1,5

016405

$0,08 Unit Price incl. VAT

26

Flat washer 5,2x18x1,5

016686

$2,25 Unit Price incl. VAT

27

Screw M6x20

015759

$2,95 Unit Price incl. VAT

28

screw

015804

$3,65 Unit Price incl. VAT

29

Spring plate M6

254485

$0,34 Unit Price incl. VAT

30

Screw w/ flange M6x16

434541

$0,09 Unit Price incl. VAT

31

Nut

969224

$0,42 Unit Price incl. VAT

32

Lock-strap L=180mm

145298

$0,08 Unit Price incl. VAT

33

Screened cap

293845

$6,14 Unit Price incl. VAT

35

Electronic control unit

CM078603

$334,06 Unit Price incl. VAT

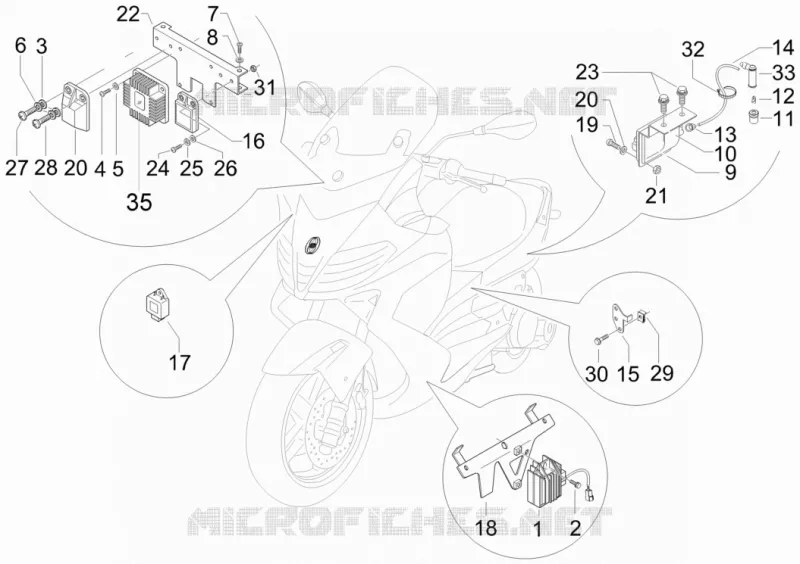

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
