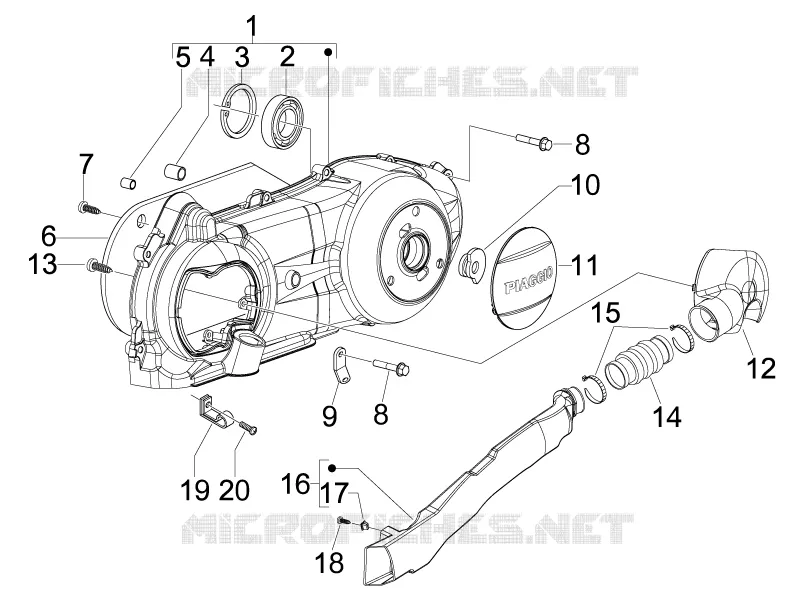

Crankcase cover - Crankcase cooling
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Transmission cover cpl.
8413805
$137,01 Unit Price incl. VAT
2
Bearing
478985
Not Available
3
Snap ring
006635
$0,25 Unit Price incl. VAT
4
Bush Ø8xØ12x8
431860
$3,70 Unit Price incl. VAT
5
Pin 6,5x9,5x15
239388
Not Available
6
Air deflector
873682
$4,20 Unit Price incl. VAT
7
Self-tapping screw
430264
$2,99 Unit Price incl. VAT
8
Screw w/ flange M6x30
289731
Not Available
9
Hose clamp
844964
$0,25 Unit Price incl. VAT
10
Retainer buffer
871458
$1,09 Unit Price incl. VAT
11
Transmission cover
CM155109
$6,30 Unit Price incl. VAT
12
Cover
843264
$17,83 Unit Price incl. VAT
13
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
14
Bellows
298548
$10,76 Unit Price incl. VAT
15
Hose clamp
709519
$5,38 Unit Price incl. VAT
16
pipe
622267
$22,29 Unit Price incl. VAT
17
Expansion plug
199190
$2,95 Unit Price incl. VAT
18
Self-tap screw
576189
$0,05 Unit Price incl. VAT
19
Hose clamp
482291
$0,44 Unit Price incl. VAT
20
Screw w/ flange M6x30
289731
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
