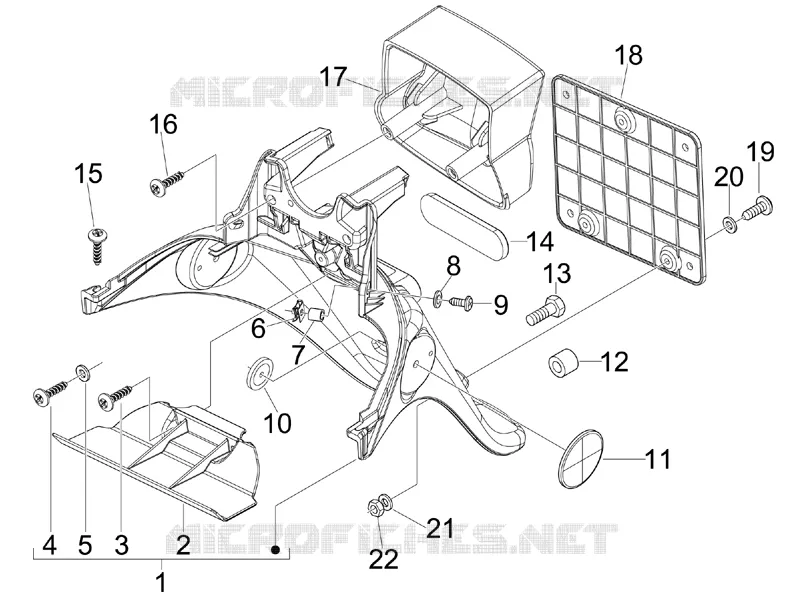

Rear cover - Splash guard
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Rear splash guard
623503000C
$65,02 Unit Price incl. VAT
1
Rear splash guard
623503000D
$65,02 Unit Price incl. VAT
2
Splash guard lower closing
622268000C
$14,30 Unit Price incl. VAT
3
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
4
Self tapping screw
297498
$0,08 Unit Price incl. VAT
5
Flat washer 4,2x12x1
013763
$0,08 Unit Price incl. VAT
6
Spring plate
CM017410
$0,34 Unit Price incl. VAT
7
Spacer
624085
$3,65 Unit Price incl. VAT
8
Washer 6,2x18x2
013950
$0,34 Unit Price incl. VAT
9
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
10
Plate
180859
$2,95 Unit Price incl. VAT
11
Reflector
582922
$4,82 Unit Price incl. VAT
12
Spacer
479882
$0,67 Unit Price incl. VAT
13
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
14
Rear retroreflector
58233R
Not Available
15
Screw M6x16
272836
$3,70 Unit Price incl. VAT
16
Self tapping screw
297498
$0,08 Unit Price incl. VAT
17
Spacer for license plate lamp
576188
$3,65 Unit Price incl. VAT
18
Number plate holder
582691
$4,96 Unit Price incl. VAT
19
screw M4x14
018591
Not Available
20
Flat washer 4,2x7,6x0,9
016404
$0,42 Unit Price incl. VAT
21
Flat washer 4,2x12x1
013763
$0,08 Unit Price incl. VAT
22
Nut M4
020104
$1,26 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
