by

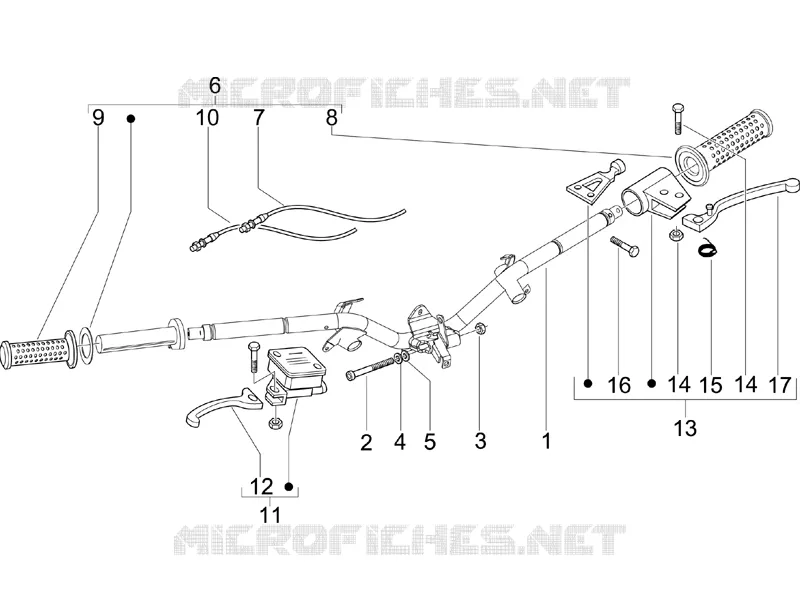

Handlebars - Master cil.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
1
Handlebar
6219415
$62,25 Unit Price incl. VAT
2
Hex socket screw
655554
$3,70 Unit Price incl. VAT
3
Nut M10
015330
$0,25 Unit Price incl. VAT
4
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
5
Flat washer
178790
$0,51 Unit Price incl. VAT
6
Throttle cpl.
CM079717
$109,35 Unit Price incl. VAT
7
Closure throttle cable
649603
$17,82 Unit Price incl. VAT
8
Grip, l.h.
274489
$13,41 Unit Price incl. VAT
9
RH hand grip
274491
$12,19 Unit Price incl. VAT
10
Opening throttle cable
649602
$15,79 Unit Price incl. VAT
11
Front brake lever hydraulic pump GRIMECA
CM063601
Not Available
11
Front brakes pump assembly (Heng Tong)
CM074901
$125,55 Unit Price incl. VAT
12
Brake lever
497042
$18,36 Unit Price incl. VAT
12
Fr. br. lever GRIMECA
646803
$90,45 Unit Price incl. VAT
13
Left hand grip with rear brake lever
CM063804
$51,30 Unit Price incl. VAT
14
Screw with nut
265249
$3,70 Unit Price incl. VAT
15
Spring
267948
$4,89 Unit Price incl. VAT
16
Screw with bushing
123394
$3,70 Unit Price incl. VAT
17
Rear brake control lever
564683
$22,55 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
