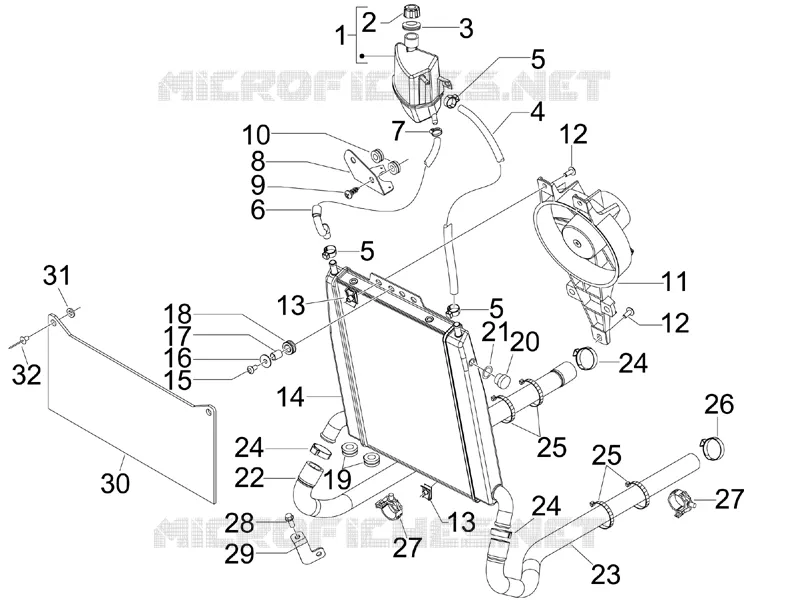

Cooling system for Nexus ie E3 from 2009

Cooling system

1

Tank

975031

Not Available

2

Expansion tank plug

623673

$15,97 Unit Price incl. VAT

3

Fuel tank gasket

620737

$4,82 Unit Price incl. VAT

4

Tank-cooler feed pipe

CM007007

$20,60 Unit Price incl. VAT

5

Hose clamp

CM001914

$0,75 Unit Price incl. VAT

6

Cooler-tank return pipe

975696

$3,23 Unit Price incl. VAT

7

Hose clamp

CM001921

$3,65 Unit Price incl. VAT

8

Bracket

975592

$2,58 Unit Price incl. VAT

9

TBCIC Screw

270793

$0,08 Unit Price incl. VAT

10

Lower rubber

258904

$0,25 Unit Price incl. VAT

11

Electric fan

58170R

Not Available

12

Screw M6x16

CM179301

$0,25 Unit Price incl. VAT

13

Spring plate M6

254485

$0,34 Unit Price incl. VAT

14

Water cooler

57311R

$93,31 Unit Price incl. VAT

15

Metric screw M6x20

259830

$0,09 Unit Price incl. VAT

16

Washer d6,2x20x1

013092

$0,17 Unit Price incl. VAT

17

Spacer

273288

$1,01 Unit Price incl. VAT

18

Upper rubber

351782

$0,34 Unit Price incl. VAT

19

Lower rubber

258904

$0,25 Unit Price incl. VAT

20

Cover

621365

$4,82 Unit Price incl. VAT

21

Copper gasket

168077

$3,65 Unit Price incl. VAT

22

PUMP RADIATOR JOINT PIPE

655644

Not Available

23

CYLINDER-HEAD RADIATOR JOINT PIPE

654154

$23,82 Unit Price incl. VAT

24

Hose clamp

CM001915

$1,03 Unit Price incl. VAT

25

Lock-strap L=277

257134

$0,25 Unit Price incl. VAT

26

Hose clamp

CM001922

$3,65 Unit Price incl. VAT

27

Pipes/cables retainer spring

CM006903

$1,43 Unit Price incl. VAT

28

Screw w/ flange M6x16

434541

$0,09 Unit Price incl. VAT

29

STIRRUP WITH I.P.

656004

$4,98 Unit Price incl. VAT

30

CONVEYOR

654220

$3,18 Unit Price incl. VAT

31

Washer 4,5x12x1

016670

$0,09 Unit Price incl. VAT

32

Rivet

252099

$3,65 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
