Parts Catalog
Swinging arm
6
Parts Diagram
Parts Catalog
Selectors - Switches - Buttons
by
Oil pump
Swinging arm
1
2
2
3
3
4
5
5
5
5
6
7
8
9
10
10
11
12
12
13
14
16
17
18
19
20
20
21
22
23
24
25
26
1
Complete swinging arm on frame side
56475R
Not Available
2
Bush
597317
$0,92 Unit Price incl. VAT
3
Roller cage
597374
Not Available
4
Spacer
CM067805
$15,31 Unit Price incl. VAT
5
Spacer
650755
$6,60 Unit Price incl. VAT
6
Hex socket screw
597080
$6,60 Unit Price incl. VAT
7
Bush
597079
$10,29 Unit Price incl. VAT
8
Nut m22x2 h=8
564611
$3,65 Unit Price incl. VAT
9
Washer
597230
$1,15 Unit Price incl. VAT
10
Nut
564878
$2,99 Unit Price incl. VAT
11
Complete swinging arm on engine side
56334R
Not Available
12
Roller cage
597374
Not Available
13
Hex socket screw M10x215
271779
$2,11 Unit Price incl. VAT
14
Spacer 189.00 mm
CM067806
$29,76 Unit Price incl. VAT
16
screw
597081
$5,20 Unit Price incl. VAT
17
Spring
651027
$2,38 Unit Price incl. VAT
18
Stand plate
650904
$111,92 Unit Price incl. VAT
19
Silent-block
272750
$12,52 Unit Price incl. VAT
20
Bush
273460
$0,75 Unit Price incl. VAT
21
Circlip
006416
$0,08 Unit Price incl. VAT
22
Silent block cover
647872
$4,49 Unit Price incl. VAT
23
Knurled bushing
830056
$0,34 Unit Price incl. VAT
24
Screw M6x16
272836
$3,70 Unit Price incl. VAT
25
Hex socket screw
597893
$0,67 Unit Price incl. VAT
26
Washer
709646
Not Available

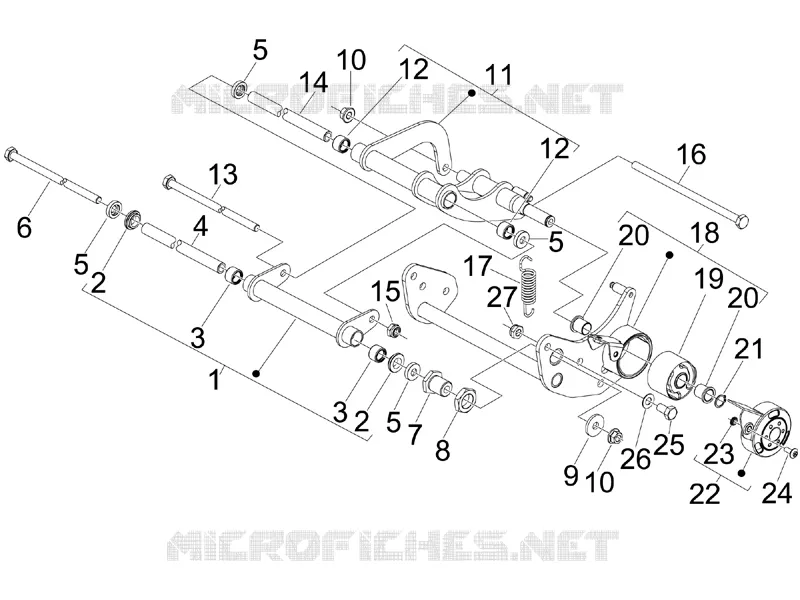

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
