1
Engine displacement
125
2
Model
NEXUS
3
Year
2009
4
Trim
Nexus ie E3
5
Parts Catalog

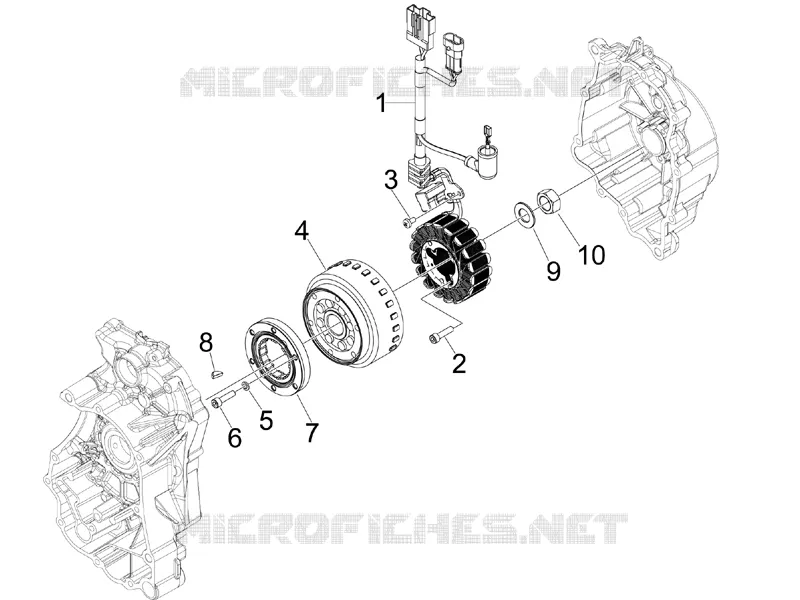

Flywheel magneto
6
Parts Diagram
Parts Catalog
Rocking levers support unit
by
Driving mirror/s
Flywheel magneto
1
2
3
4
5
6
7
8
9
10
1
Stator cpl.
638848
Not Available
2
Low head socket screw M6x30
122637
$0,28 Unit Price incl. VAT
3
Screw M5x10
018575
$2,95 Unit Price incl. VAT
4
Complete rotor (Kokusan)
639410
$46,48 Unit Price incl. VAT
5
Break washer
479515
$0,08 Unit Price incl. VAT
6
Hex socket screw M6x24
847679
Not Available
7
Complete freewheel
8477975
$71,50 Unit Price incl. VAT
8
Transmission key
000097
$5,21 Unit Price incl. VAT
9
Plain washer
842385
$0,68 Unit Price incl. VAT
10
Nut M16x13
563728
$1,42 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
