1
Engine displacement
800
2
Model
GP
3
Year
2011
4
Trim
GP
5
Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Front wheel
by
Driving pulley

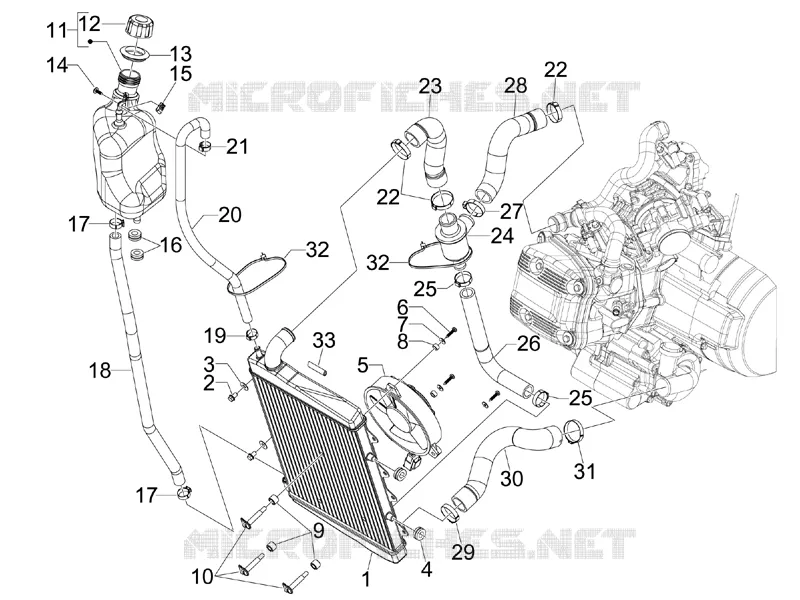

Cooling system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
22
23
24
25
25
26
27
28
29
30
31
32
32
33
1
Water cooler
57341R
Not Available
2
Screw w/ flange M6x10
969296
$0,16 Unit Price incl. VAT
3
Washer
078307
$0,17 Unit Price incl. VAT
4
Lower rubber
258904
$0,25 Unit Price incl. VAT
5
Fan, cpl.
622055
Not Available
6
Screw 4,2x20*
AP8150270
$3,65 Unit Price incl. VAT
7
Flat washer 4,2x12x1
013763
$0,08 Unit Price incl. VAT
8
Spacer
622306
$1,51 Unit Price incl. VAT
9
Spacer
654878
$1,54 Unit Price incl. VAT
10
Pin
AP8121464
$5,38 Unit Price incl. VAT
11
Coolant tank
653031
Not Available
12
Expansion tank plug
623673
$15,97 Unit Price incl. VAT
13
Fuel tank gasket
620737
$4,82 Unit Price incl. VAT
14
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
15
Spring plate
CM017410
$0,34 Unit Price incl. VAT
16
Lower rubber
258904
$0,25 Unit Price incl. VAT
17
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
18
Return pipe
654117
Not Available
19
Hose clamp
CM001902
Not Available
20
Breather pipe
654118
Not Available
21
Hose clamp
CM001903
$0,84 Unit Price incl. VAT
22
Hose clip 35-33
CM001926
$3,65 Unit Price incl. VAT
23
Thermostat-cooler pipe fitting link
652897
$9,64 Unit Price incl. VAT
24
Thermostat valve set 85°C
834232
$33,54 Unit Price incl. VAT
25
Hose clamp
CM001907
$0,84 Unit Price incl. VAT
26
Water hose
652898
$7,12 Unit Price incl. VAT
27
Hose clamp
CM001916
$3,65 Unit Price incl. VAT
28
Engine-thermostat pipe
621397
$7,06 Unit Price incl. VAT
29
Hose clamp
CM001924
$5,38 Unit Price incl. VAT
30
Pump connection hose
622053
Not Available
31
Hose clamp
CM001925
$3,65 Unit Price incl. VAT
32
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
33
Guard
580160
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
