1
Engine displacement
800
2
Model
GP
3
Year
2011
4
Trim
GP
5
Parts Catalog

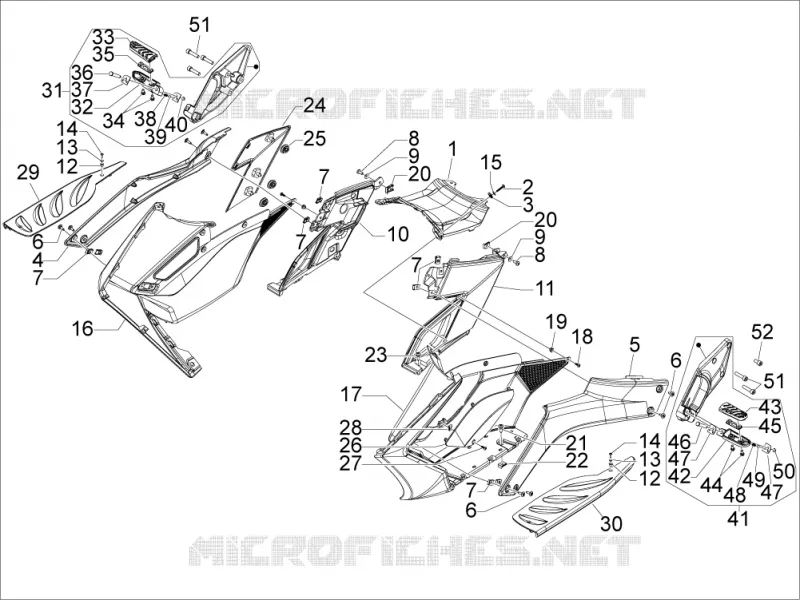

Central cover - Footrests
6
Parts Diagram
Parts Catalog
Fuel tank
by
Remote control switches - Battery - Horn
Central cover - Footrests
1
2
3
4
5
6
6
6
7
7
7
7
7
8
8
9
9
10
11
12
12
13
13
14
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
47
48
49
50
51
51
52
1
Tunnel central cover
656197000C
$11,55 Unit Price incl. VAT
1
Tunnel central cover
653149000C
Not Available
2
Self-tapping screw
CM178610
$0,17 Unit Price incl. VAT
3
Spring plate
CM017410
$0,34 Unit Price incl. VAT
4
Tunnel right lateral cover
6531510090
Not Available
4
Tunnel right lateral cover
653151
$18,45 Unit Price incl. VAT
5
Tunnel left lateral cover
6531500090
Not Available
5
Tunnel left lateral cover
653150
$17,08 Unit Price incl. VAT
6
Screw w/ flange M5x12
AP8152302
Not Available
7
Spring plate M5
248419
$0,67 Unit Price incl. VAT
8
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
9
Washer
013963
$0,19 Unit Price incl. VAT
10
Right lateral protection
653148
Not Available
10
Right lateral protection
6531480090
$39,75 Unit Price incl. VAT
11
Left lateral protection
6531470090
Not Available
11
Left lateral protection
653147
Not Available
12
Spacer
655783
$0,99 Unit Price incl. VAT
13
Washer 6.4x13x1.5
013777
$0,08 Unit Price incl. VAT
14
Screw metrica
CM179303
$0,34 Unit Price incl. VAT
15
Washer 4,5x12x1
016670
$0,09 Unit Price incl. VAT
16
RH footrest
653138000C
Not Available
17
LH footrest
653137000C
Not Available
18
Self-tap screw
CM178604
$0,08 Unit Price incl. VAT
19
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
20
Spring plate
CM017410
$0,34 Unit Price incl. VAT
21
Metric screw TBC
259348
$2,99 Unit Price incl. VAT
21
screw
CM179202
$0,25 Unit Price incl. VAT
22
Spring plate M6
254485
$0,34 Unit Price incl. VAT
23
Screw M6x16
272836
$3,70 Unit Price incl. VAT
23
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
24
Insp. door
653337
$7,39 Unit Price incl. VAT
24
Insp. door
6533370090
$23,43 Unit Price incl. VAT
25
Elastic drift
463195
Not Available
26
Spark plug insp. door
653139000C
$7,99 Unit Price incl. VAT
27
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
28
Spring plate
CM017410
$0,34 Unit Price incl. VAT
29
Rh mat
655787
Not Available
30
Lh mat
655786
$12,53 Unit Price incl. VAT
31
Complete right passenger footrest
656428
Not Available
32
RH footpad
656429000C
Not Available
33
Support rubber part
GU32443210
$12,45 Unit Price incl. VAT
34
Screw w/ flange
656510
Not Available
35
Plate
GU32441210
$2,37 Unit Price incl. VAT
36
Footrest pin
656511
Not Available
37
Footrest plate
AP8134451
$2,56 Unit Price incl. VAT
38
Coil compress. spring
AP8121133
$0,53 Unit Price incl. VAT
39
Ball
002139
$0,11 Unit Price incl. VAT
40
Safety washer
006408
$0,09 Unit Price incl. VAT
41
Complete left passenger footrest
656507
Not Available
42
LH footrest
656509000C
Not Available
43
Support rubber part
GU32443211
$12,45 Unit Price incl. VAT
44
Screw w/ flange
656510
Not Available
45
Plate
GU32441210
$2,37 Unit Price incl. VAT
46
Footrest pin
656511
Not Available
47
Footrest plate
AP8134451
$2,56 Unit Price incl. VAT
48
Coil compress. spring
AP8121133
$0,53 Unit Price incl. VAT
49
Ball
002139
$0,11 Unit Price incl. VAT
50
Safety washer
006408
$0,09 Unit Price incl. VAT
51
Hex socket screw
654484
$0,94 Unit Price incl. VAT
52
Screw
654965
$0,50 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
