1
Engine displacement
800
2
Model
GP
3
Year
2011
4
Trim
GP
5
Parts Catalog
Brakes pipes - Calipers
6
Parts Diagram
Parts Catalog
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
by
Wheel huosing - Mudguard
Brakes pipes - Calipers
1
2
3
4
5
5
6
6
7
7
8
8
8
8
9
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
1
Lh brake caliper 2 x 28
CM081901
$145,97 Unit Price incl. VAT
2
Brake pads couple
650097
$24,30 Unit Price incl. VAT
3
Rh brake caliper 2 x 28
CM081902
$146,75 Unit Price incl. VAT
4
Brake pads couple
650097
$24,30 Unit Price incl. VAT
5
Torx convex big end screw
651297
$4,82 Unit Price incl. VAT
6
Spring washer
709047
$0,08 Unit Price incl. VAT
7
Oil pipe screw M10x18
265451
$9,25 Unit Price incl. VAT
8
Flat washer
600075
$1,21 Unit Price incl. VAT
9
screw
127863
$1,80 Unit Price incl. VAT
10
Right break pipes
649073
Not Available
11
Left flexible hose
649074
Not Available
12
Joint
136371
$17,46 Unit Price incl. VAT
13
Hex socket screw M6x30
319538
$0,19 Unit Price incl. VAT
13
Hex socket screw M6x16
709099
$0,16 Unit Price incl. VAT
14
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
15
switch support bracket
649743
Not Available
16
Front brake pipe
651234
$89,99 Unit Price incl. VAT
16
Front brake pipe
649075
$27,60 Unit Price incl. VAT
17
Brake caliper Heng Tong
CM068308
$70,30 Unit Price incl. VAT
18
Brake pads couple Heng Tong
647078
$35,62 Unit Price incl. VAT
19
screw
649554
$3,65 Unit Price incl. VAT
20
Washer
006970
$0,16 Unit Price incl. VAT
21
Oil pipe screw M10x18
265451
$9,25 Unit Price incl. VAT
22
Gasket
127927
$0,25 Unit Price incl. VAT
23
Rear brake flexible pipe
649076
Not Available
24
Oil pipe screw M10x18
265451
$9,25 Unit Price incl. VAT
25
Gasket
127927
$0,25 Unit Price incl. VAT
26
Hose clamp
649912
$0,44 Unit Price incl. VAT
27
Screw w/ flange M6x12
AP8152277
$0,25 Unit Price incl. VAT
28
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
29
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
30
Non return spring L=33
CM006906
$1,26 Unit Price incl. VAT
30
Non return spring
CM006902
$0,92 Unit Price incl. VAT
31
Parking brake lever unit
649157
$51,91 Unit Price incl. VAT
32
screw
292500
$2,95 Unit Price incl. VAT
33
Flat washer 4,2x7,6x0,9
016404
$0,42 Unit Price incl. VAT
34
stop Button
584953
Not Available
35
Lever cover
649925
$6,08 Unit Price incl. VAT
36
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
37
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
38
Parking brake control transmission
649657
$15,24 Unit Price incl. VAT
39
Nut M8
020208
$2,95 Unit Price incl. VAT
40
Bush
266040
$3,70 Unit Price incl. VAT
41
Hose clamp
649941
$11,45 Unit Price incl. VAT
42
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
43
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
43
Left parking brake pin
CM084601
$197,10 Unit Price incl. VAT
44
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
45
Hose clamp
649378
$4,82 Unit Price incl. VAT
46
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
47
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
48
Left parking brake pin
CM074501
Not Available
49
Brake pads couple
649830
$44,55 Unit Price incl. VAT
50
Hex socket screw
564606
$0,28 Unit Price incl. VAT
51
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
52
Brake caliper support plate
649768
Not Available
53
Hex socket screw M6x12
274369
$0,17 Unit Price incl. VAT
54
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
55
Ring
006624
$2,99 Unit Price incl. VAT
56
brake calliper cover
649679
$3,56 Unit Price incl. VAT
57
Hex socket screw M6x20
271147
$0,17 Unit Price incl. VAT
58
Knurled bushing
830056
$0,34 Unit Price incl. VAT
59
Brake supp. plate pin
666139
$7,56 Unit Price incl. VAT
60
Stop switch bridle
641630
$6,14 Unit Price incl. VAT
61
Calliper holder plate lock pin fastener
649091
$9,75 Unit Price incl. VAT

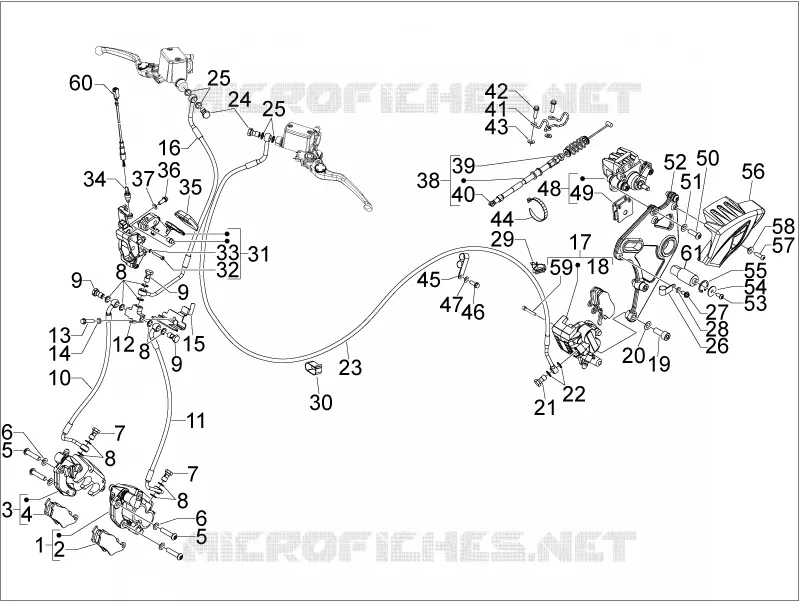

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
