1
Engine displacement
500
2
Model
FUOCO
3
Year
2008
4
Trim
Fuoco E3
5
Parts Catalog

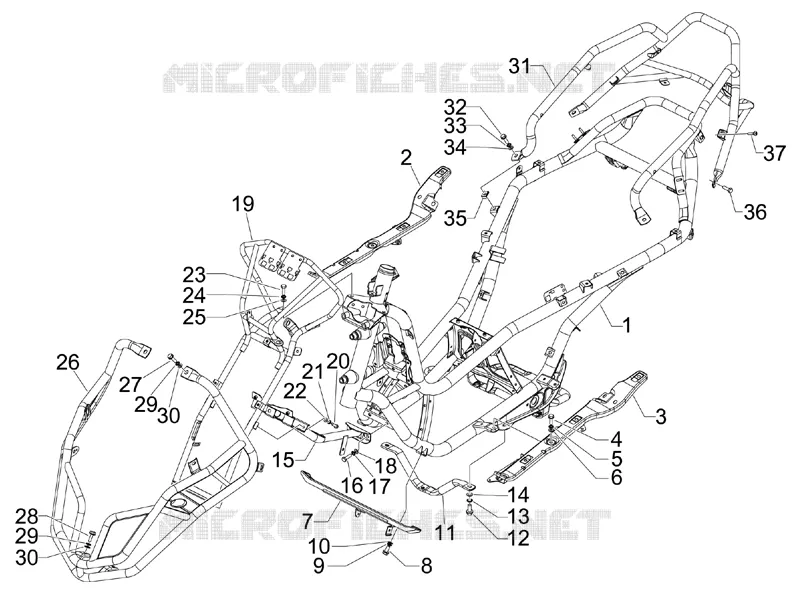

Frame/bodywork
6
Parts Diagram
Parts Catalog
Fork's components (Mingxing)
by
Flywheel magneto
Frame/bodywork
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
30
31
32
33
34
35
36
37
1
Front bumper sub-chassis with U.P.
653470
Not Available
2
Footrest support with u.p. right cross pin
623470
Not Available
2
Footrest support with u.p. right cross pin
CM1755055
Not Available
2
Footrest support with u.p. right cross pin
CM1755025
Not Available
3
Cross pin for actuator
6536685
$28,44 Unit Price incl. VAT
4
screw M6x16
031088
$0,17 Unit Price incl. VAT
5
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
6
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
7
Pipes connection cross pin
6234865
$128,80 Unit Price incl. VAT
7
Pipes connection cross pin
623486
Not Available
8
Hex screw M8x30
031122
$2,95 Unit Price incl. VAT
9
Notched washer 14x8,3x1,8
012540
$0,08 Unit Price incl. VAT
10
Flat washer 8,4x18x2
003038
$0,25 Unit Price incl. VAT
11
Small carrier connector front pipe
653294
$18,75 Unit Price incl. VAT
12
Screw m8x18 zn
031117
$0,19 Unit Price incl. VAT
13
Notched washer 14x8,3x1,8
012540
$0,08 Unit Price incl. VAT
14
Flat washer 8,4x18x2
003038
$0,25 Unit Price incl. VAT
15
Front sub-chassis strut
6227795
$118,20 Unit Price incl. VAT
16
screw M8x20
031118
Not Available
17
Notched washer 14x8,3x1,8
012540
$0,08 Unit Price incl. VAT
18
Flat washer 8,4x18x2
003038
$0,25 Unit Price incl. VAT
19
Front sub-chassis with U.P.
6534555
Not Available
20
Screw m6x12
031086
$0,08 Unit Price incl. VAT
21
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
22
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
23
screw M8x20
031118
Not Available
24
Notched washer 14x8,3x1,8
012540
$0,08 Unit Price incl. VAT
25
Flat washer 8,4x18x2
003038
$0,25 Unit Price incl. VAT
26
Front bumper sub-chassis with U.P.
653423
Not Available
26
Front bumper sub-chassis with U.P.
657558
$532,57 Unit Price incl. VAT
27
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
28
Screw w/ flange M6x25
414837
Not Available
28
Screw w/ flange M6x30
289731
Not Available
29
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
30
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
31
Rear sub-chassis with U.P.
653433
$276,97 Unit Price incl. VAT
31
Rear sub-chassis with U.P.
657557
$558,39 Unit Price incl. VAT
32
Hex screw M6x22
031091
$0,17 Unit Price incl. VAT
32
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
33
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
34
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
35
Spring plate M6
254485
$0,34 Unit Price incl. VAT
36
screw M6x16
624995
$3,70 Unit Price incl. VAT
37
Metric screw TBC
259348
$2,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
