by

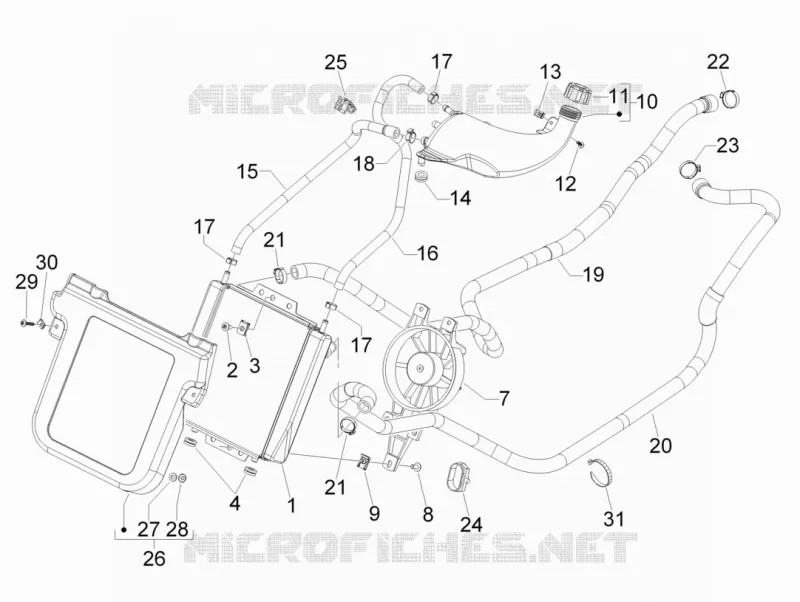

Cooling system
1
2
3
4
7
8
9
10
11
12
13
14
15
16
17
17
17
18
19
20
21
21
22
23
24
25
26
27
28
29
30
31
1
Water cooler
653468
Not Available
2
Screw M6x16
272836
$3,70 Unit Price incl. VAT
3
Spring plate M6
254485
$0,34 Unit Price incl. VAT
4
Lower rubber
258904
$0,25 Unit Price incl. VAT
7
Complete electric fan
641556
Not Available
7
Complete electric fan
640389
Not Available
8
Screw M6x16
272836
$3,70 Unit Price incl. VAT
8
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
9
Spring plate M6
254485
$0,34 Unit Price incl. VAT
10
Coolant tank
653463
Not Available
11
Expansion tank plug
623673
$15,97 Unit Price incl. VAT
12
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
13
Spring plate
CM017410
$0,34 Unit Price incl. VAT
14
Lower rubber
258904
$0,25 Unit Price incl. VAT
15
Cooler-expansion tank pipe
622582
$7,23 Unit Price incl. VAT
16
Manifold-union breather pipe
622581
$8,16 Unit Price incl. VAT
17
Hose clamp
CM001903
$0,84 Unit Price incl. VAT
18
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
19
Pump-radiator pipe fitting
652618
$72,85 Unit Price incl. VAT
20
Radiator-head pipe fitting link
652619
$67,48 Unit Price incl. VAT
21
Hose clamp
CM001907
$0,84 Unit Price incl. VAT
22
Hose clamp
CM001908
$3,65 Unit Price incl. VAT
23
Hose clamp
CM001915
$1,03 Unit Price incl. VAT
24
Non return spring
CM006902
$0,92 Unit Price incl. VAT
25
Pipes/cables retainer spring
CM006903
$1,43 Unit Price incl. VAT
26
Complete radiator frame
653709
$118,35 Unit Price incl. VAT
27
Spacer
479882
$0,67 Unit Price incl. VAT
28
Spring plate
230359
$2,95 Unit Price incl. VAT
29
Self-tap screw
576189
$0,05 Unit Price incl. VAT
30
Spring plate
CM017410
$0,34 Unit Price incl. VAT
31
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
