1
Engine displacement
500
2
Model
FUOCO
3
Year
2008
4
Trim
Fuoco E3
5
Parts Catalog

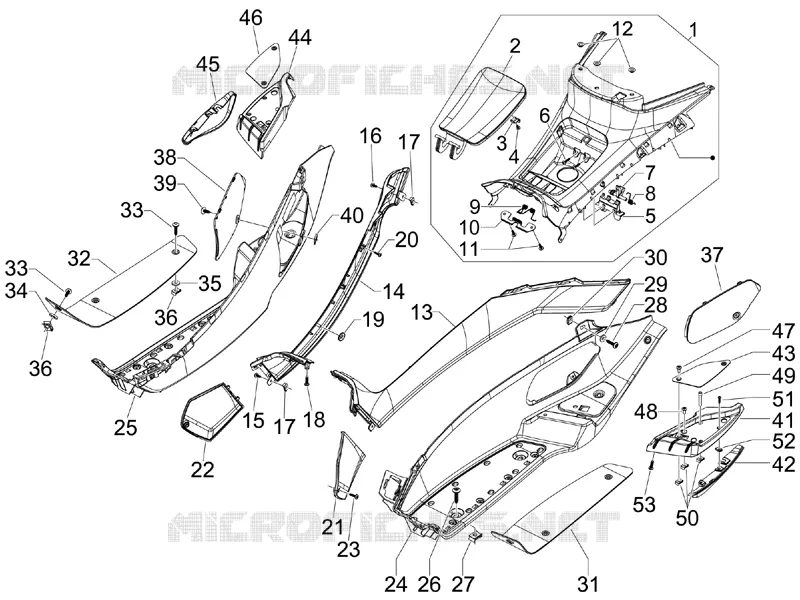

Central cover - Footrests
6
Parts Diagram
Parts Catalog
Handlebars coverages
by
Handlebars - Master cil.
Central cover - Footrests
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
1
Complete central cover
623189000C
Not Available
2
Fuel flap
620250000C
$12,45 Unit Price incl. VAT
3
Square
299689
Not Available
4
Self tapping screw
297498
$0,08 Unit Price incl. VAT
5
Maintenance
620491
$1,43 Unit Price incl. VAT
6
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
7
Cam lever
576626
$1,51 Unit Price incl. VAT
8
Spring
575604
$0,92 Unit Price incl. VAT
9
Spring
621507
$2,77 Unit Price incl. VAT
10
Flap retainer plate
624465
$6,30 Unit Price incl. VAT
11
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
12
Knurled bushing
830056
$0,34 Unit Price incl. VAT
13
Left central cover
624444
$78,39 Unit Price incl. VAT
13
Left central cover
62444400EQ
$96,83 Unit Price incl. VAT
13
Left central cover
624444000C
$96,83 Unit Price incl. VAT
13
Left central cover
6244440090
$40,19 Unit Price incl. VAT
14
Right central cover
62444500EQ
Not Available
14
Right central cover
624445000C
$96,83 Unit Price incl. VAT
14
Right central cover
6244450090
Not Available
15
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
16
Self-tap screw
576189
$0,05 Unit Price incl. VAT
17
Spring plate
CM017410
$0,34 Unit Price incl. VAT
18
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
19
Spring plate
230359
$2,95 Unit Price incl. VAT
20
Self tapping screw
297498
$0,08 Unit Price incl. VAT
21
Left fuse access flap
624458000C
$72,09 Unit Price incl. VAT
21
Left fuse access flap
6244580090
Not Available
22
Right fuse access flap
6244590090
Not Available
22
Right fuse access flap
624459000C
$72,09 Unit Price incl. VAT
23
Screw 3,5x19*
015994
$2,95 Unit Price incl. VAT
24
LH footrest
654367000C
$43,65 Unit Price incl. VAT
25
RH footrest
654368000C
$43,65 Unit Price incl. VAT
26
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
27
Spring plate M6
254485
$0,34 Unit Price incl. VAT
28
Screw M6x16
272836
$3,70 Unit Price incl. VAT
29
Washer
297029
$3,70 Unit Price incl. VAT
30
Spring plate
CM017410
$0,34 Unit Price incl. VAT
31
Lh mat
653426
$31,21 Unit Price incl. VAT
32
Rh mat
653427
$31,21 Unit Price incl. VAT
33
Hex socket screw
654507
$0,60 Unit Price incl. VAT
34
Front retainer spacer
653478
$3,65 Unit Price incl. VAT
35
Rear central retainer spacer
653479
$3,65 Unit Price incl. VAT
36
Spring plate M6
254485
$0,34 Unit Price incl. VAT
37
Spark plug insp. door DX
623254000C
$17,83 Unit Price incl. VAT
38
Spark plug insp. door SX
653287000C
$17,83 Unit Price incl. VAT
39
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
40
Spring plate
CM017410
$0,34 Unit Price incl. VAT
41
Left upper passenger footrest
654361000C
$12,45 Unit Price incl. VAT
42
Left lower passenger footrest
654363000C
$44,19 Unit Price incl. VAT
43
Left passenger mat
654365
$36,58 Unit Price incl. VAT
44
Right upper passenger footrest
654362000C
$12,45 Unit Price incl. VAT
45
Right lower passenger footrest
654364000C
$8,16 Unit Price incl. VAT
46
Right passenger mat
654366
$36,58 Unit Price incl. VAT
47
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
48
screw M6x16
624995
$3,70 Unit Price incl. VAT
49
Hex socket screw M6x30
319538
$0,19 Unit Price incl. VAT
50
Spring plate M6
254485
$0,34 Unit Price incl. VAT
51
Self-tap screw
576189
$0,05 Unit Price incl. VAT
52
Spring plate
CM017410
$0,34 Unit Price incl. VAT
53
Self tapping screw
297498
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
