Engine displacement
500
2
Model
FUOCO
3
Year
2013
4
Trim
Fuoco 4T-4V ie E3 LT
5
Parts Catalog
Flywheel magneto cover - Oil filter
6
Parts Diagram
Parts Catalog
Fuel tank
by
Rear suspension - Shock absorber/s
Flywheel magneto cover - Oil filter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
1
COPERCHIO VOLANO COMPLETO
B0174635
$444,15 Unit Price incl. VAT
2
GUARNIZIONE CARTER / COPERCHIO VOLANO
872914
$17,25 Unit Price incl. VAT
3
Plug M12x1,5
411311
$0,67 Unit Price incl. VAT
4
TUBO SFIATO OLIO
829047
$2,57 Unit Price incl. VAT
5
GUARNIZIONE O-RING k6
237553
$1,36 Unit Price incl. VAT
6
Screw M5x16
015715
$2,25 Unit Price incl. VAT
7
SUPPORTO LAMELLE COMPLETO
82778R
$12,01 Unit Price incl. VAT
8
LAMIERINO BLOCC.VALV.CON P.I.
876060
$6,38 Unit Price incl. VAT
9
VITE AUTOMASCHIANTE
433800
$0,19 Unit Price incl. VAT
10
TUBO SCARICO ACQUA
871795
$1,03 Unit Price incl. VAT
11
VALVOLA REGOL.PRESSIONE OLIO
829661
$6,44 Unit Price incl. VAT
12
MOLLA VALVOLA PRESS.OL
829486
$4,82 Unit Price incl. VAT
13
RACCORDO FILTRO OLIO
829122
$4,13 Unit Price incl. VAT
14
TAPPO FASATURA X RIC.
8290405
$10,28 Unit Price incl. VAT
15
O-ring
479986
Not Available
16
ROSETTA 10,5X17X1,5
AP9150472
$4,82 Unit Price incl. VAT
17
Oil pressure sensor
641541
Not Available
18
ALBERO POMPA ACQUA
872536
$29,47 Unit Price incl. VAT
19
RONDELLA PIANA D22 F12,1 S1
274246
$0,34 Unit Price incl. VAT
20
Gasket ring
873934
Not Available
21
ANELLO DI TENUTA POMPA ACQUA
82991R
$24,39 Unit Price incl. VAT
22
Water pump impeller cpl.
827929
Not Available
23
ASTA LIVELLO OLIO COMPL.
832130
$2,94 Unit Price incl. VAT
24
ANELLO DI TENUTA (O-RING)
827085
$2,99 Unit Price incl. VAT
25
FASCETTA STRINGITUBO
CM002901
$0,09 Unit Price incl. VAT
26
Oil filter
82960R
$14,99 Unit Price incl. VAT
27
MANCETTA FISSAGGIO TUBAZIONE
849825
$4,82 Unit Price incl. VAT
28
FASCETTA
845978
$5,63 Unit Price incl. VAT
29
MOLLETTA
641201
$4,82 Unit Price incl. VAT
30
VITE (M6X35)
414838
$0,67 Unit Price incl. VAT
31
VITE ESAGONALE FLANGIATA M6X25 CL10,9
B016774
$0,34 Unit Price incl. VAT
32
VITE L.70
434429
$0,60 Unit Price incl. VAT
33
VITE ESAGONALE FLANGIATA M6x50
B016775
$0,42 Unit Price incl. VAT
34
FILTRO OLIO ASPIR.COMP
826033
$13,61 Unit Price incl. VAT
35
ANELLO OR 20,35X1,78
288474
$0,08 Unit Price incl. VAT
36
GUARNIZIONE OR 31,47x1,78
285536
$0,92 Unit Price incl. VAT
37
TAPPO FILTRO OLIO
826165
$5,88 Unit Price incl. VAT
38
STAFFA
1A002535
$8,91 Unit Price incl. VAT

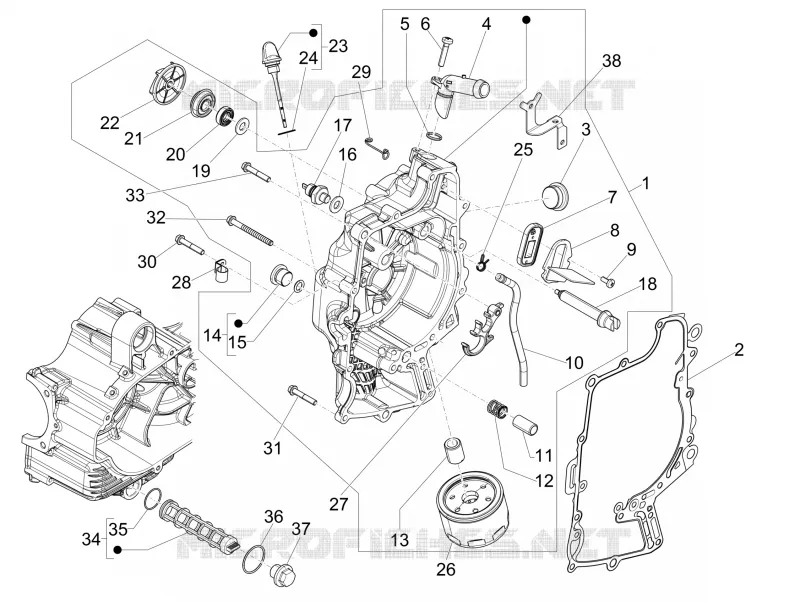

Find the detailed Flywheel magneto cover - Oil filter GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
