Silencer for GILERA PIAGGIO VESPA Fuoco 4T-4V ie E3 LT from 2013

Silencer

1

Silencer complete with protection

1A0013155

Not Available

2

TELAIO SUPP.PARACALORE

846757

$43,20 Unit Price incl. VAT

3

VITE TESTA BOMBATA ESAGONALE

833569

$2,95 Unit Price incl. VAT

4

ROSETTA CONICA ZIGRINATA

834951

$0,15 Unit Price incl. VAT

5

PROTEZIONE MARMITTA ES

833910

$40,12 Unit Price incl. VAT

6

VITE TBEI M6X20

834038

$0,29 Unit Price incl. VAT

7

BICCHIERINO

834643

$4,82 Unit Price incl. VAT

8

RONDELLA PIANA

834039

$2,95 Unit Price incl. VAT

9

PASSACAVO

834040

$5,00 Unit Price incl. VAT

10

DISTANZIALE

834041

$5,20 Unit Price incl. VAT

11

Graphite bushing

874946

Not Available

12

FASCETTA

874957

$18,12 Unit Price incl. VAT

13

VITE TESTA BOMBATA CHIAVE TORX

599208

$0,62 Unit Price incl. VAT

14

ROSETTA ELASTICA TIPO "CONTACT"

834187

$0,16 Unit Price incl. VAT

15

RONDELLA PIANA

840569

$3,65 Unit Price incl. VAT

16

Silencer support band

599553

Not Available

17

PERNO SUPP.ATTACCO MARMITTA

599391

$17,07 Unit Price incl. VAT

18

PERNO INF. ATTACCO FASCIA MARMITTA

599392

$8,91 Unit Price incl. VAT

19

VITE A TESTA CILINDRICA CON ESAGONO INCA

842502

$1,43 Unit Price incl. VAT

20

RONDELLA PIANA

846163

$3,65 Unit Price incl. VAT

21

RONDELLA ELASTICA

007608

$2,95 Unit Price incl. VAT

22

Nut M8

020208

$2,95 Unit Price incl. VAT

23

RONDELLA PIANA

003058

$0,08 Unit Price incl. VAT

24

DADO M8-6H

020008

$0,08 Unit Price incl. VAT

25

DADO AFR FLG M8 CL6S H

015341

$0,42 Unit Price incl. VAT

26

GUARNIZ.MARMITTA-TESTA

828194

$7,94 Unit Price incl. VAT

27

Lamda sensor

639806

Not Available

29

FASCETTA STRINGITUBO 61.5-65.5

253293

$3,65 Unit Price incl. VAT

30

Exhaust manifold with I.P.

B014382

Not Available

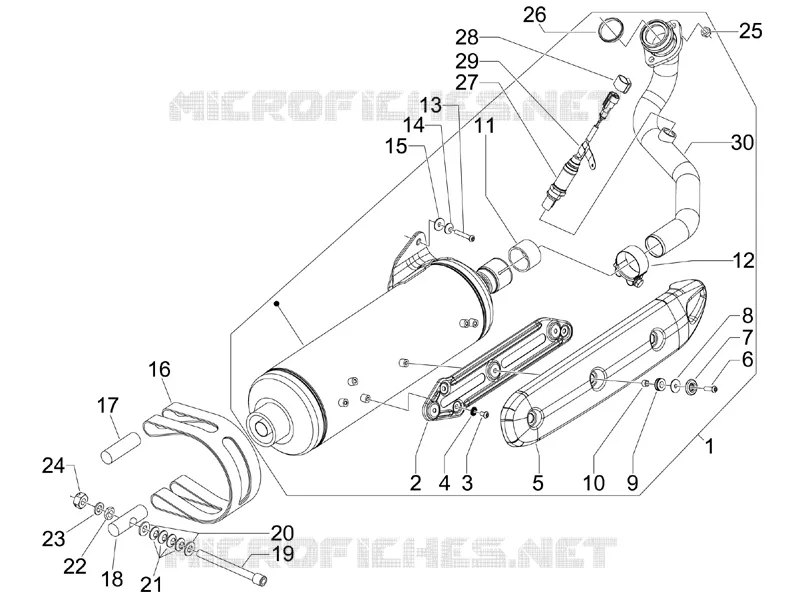

Find the detailed Silencer GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for Fuoco 4T-4V ie E3 LT

Crankcase cover - Crankcase cooling

Throttle body - Injector - Union pipe

Flywheel magneto

Driving mirror/s

Side cover - Spoiler

Central cover - Footrests

Handlebars coverages

Cylinder-piston-wrist pin unit

Frame/bodywork

Engine, assembly

Brakes pipes - Calipers

Fork's components (Mingxing)

Front glove-box - Knee-guard panel

Rear headlamps - Turn signal lamps

Driven pulley

Swinging arm

Front wheel

Cooling system

Meter combination - Cruscotto

Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil

Head unit - Valve

Selectors - Switches - Buttons

Stater - Electric starter

Wheel huosing - Mudguard

Crankcase

Silencer

Main cable harness

Rear cover - Splash guard

Cylinder head cover

Oil pump

Fuel tank

Flywheel magneto cover - Oil filter

Rear suspension - Shock absorber/s

Helmet huosing - Undersaddle

Rocking levers support unit

Cooler pump

Reduction unit

Rear wheel

Remote control switches - Battery - Horn

Driving pulley

Air filter

Stand/s

Plates - Emblems

Saddle/seats

Front headlamps - Turn signal lamps

Transmissions

Control pedals - Levers

Handlebars - Master cil.

Fork/steering tube - Steering bearing unit

Crankshaft

Front shield

Locks

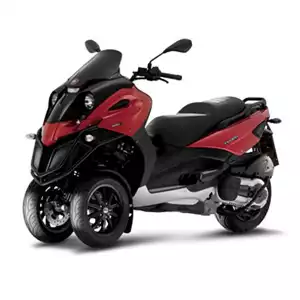

GILERA PIAGGIO VESPA Fuoco 4T-4V ie E3 LT 2013
