1
Engine displacement
500
2
Model
FUOCO
3
Year
2013
4
Trim
Fuoco 4T-4V ie E3 LT
5
Parts Catalog

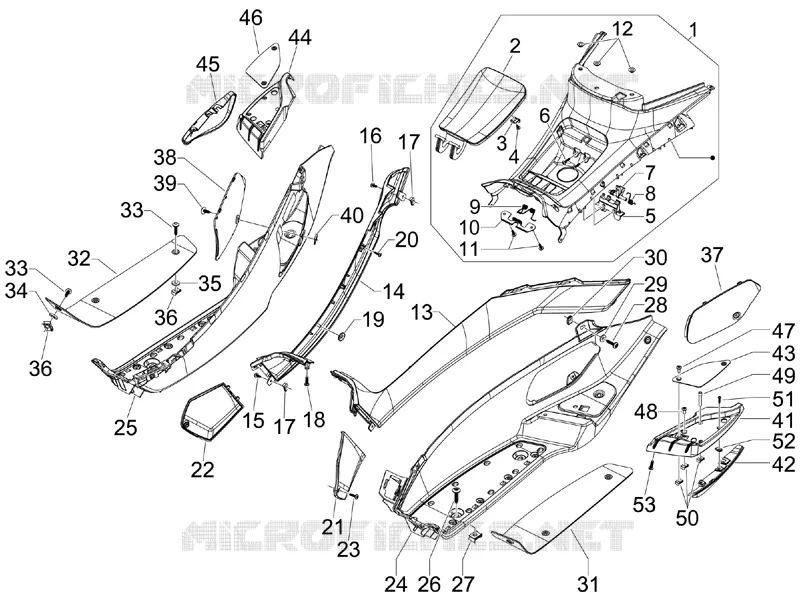

Central cover - Footrests
6
Parts Diagram
Parts Catalog
Side cover - Spoiler
by
Handlebars coverages
Central cover - Footrests
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
1
Complete central cover
623189000C
Not Available
2
PORTELLO BENZINA
620250000P
$11,77 Unit Price incl. VAT
3
SQUADRETTA
AP8161182
$10,00 Unit Price incl. VAT
4
VITE AUTOF.CON TAGLIO A CROCE 3,5x13
297498
$0,08 Unit Price incl. VAT
5
SUPPORTO CAGNOLETTO
620491
$1,43 Unit Price incl. VAT
6
VITE AUTOFIL. TBCIC 3,8x16
270793
$0,08 Unit Price incl. VAT
7
CAGNOLETTO PORTELLO
576626
$1,51 Unit Price incl. VAT
8
MOLLA CAGNOLETTO
575604
$0,92 Unit Price incl. VAT
9
MOLLA PORTELLO
621507
$2,77 Unit Price incl. VAT
10
PIASTRINA FISS. PORTELLO
624465
$6,30 Unit Price incl. VAT
11
VITE AUTOFILETTANTE (3X20)
258146
$0,25 Unit Price incl. VAT
12
BOCCOLA ZIGRINATA
830056
$0,34 Unit Price incl. VAT
13
COPERTURA CENTRALE SX
624444
$78,39 Unit Price incl. VAT
13
COPERTURA CENTRALE SX
624444000C
$96,83 Unit Price incl. VAT
14
COPERTURA CENTRALE DX
624445000C
$96,83 Unit Price incl. VAT
14
COPERTURA CENTRALE DX
624445
$78,39 Unit Price incl. VAT
15
VITE AUTOF. TCCIC D4,2x13 UNI 947
259349
$0,17 Unit Price incl. VAT
16
VITE AUTOF. TCCIC D4,2x13 UNI 947
259349
$0,17 Unit Price incl. VAT
17
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT
18
VITE AUTOFIL. TBCIC 3,8x16
270793
$0,08 Unit Price incl. VAT
19
PIASTRINA ELASTICA
230359
$2,95 Unit Price incl. VAT
20
VITE AUTOF.CON TAGLIO A CROCE 3,5x13
297498
$0,08 Unit Price incl. VAT
21
PORTELLO ACCESSO FUSIBILI SX
624458000C
$72,09 Unit Price incl. VAT
22
PORTELLO ACCESSO FUSIBILI DX
624459
$57,79 Unit Price incl. VAT
22
PORTELLO ACCESSO FUSIBILI DX
624459000C
$72,09 Unit Price incl. VAT
23
VITE AUTOF. AB TC 3,5x19 UNI 6954-71
015994
$2,95 Unit Price incl. VAT
24
PEDANA SINISTRA
654367000C
$43,65 Unit Price incl. VAT
25
PEDANA DESTRA
654368000C
$43,65 Unit Price incl. VAT
26
VITE AUTOF. TCCIC D4,2x13 UNI 947
259349
$0,17 Unit Price incl. VAT
27
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
28
VITE METRICA CON INT.A CROCE M6x16.
272836
$3,70 Unit Price incl. VAT
29
RONDELLA PIANA 20 x 6,5 x 1,5
297029
$3,70 Unit Price incl. VAT
30
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT
31
Lh mat
653426
$31,21 Unit Price incl. VAT
32
TAPPETINO DESTRO
674360
$29,66 Unit Price incl. VAT
33
VITE TESTA BOMBATA ESAGONO INCASSATO
654507
$0,60 Unit Price incl. VAT
34
DISTANZIALE FISS.ANTERIORE
653478
$3,65 Unit Price incl. VAT
35
DISTANZIALE FISS.CENTRALE POST.
653479
$3,65 Unit Price incl. VAT
36
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
37
PORTELLO ISPEZIONE CANDELA
623254000C
$17,83 Unit Price incl. VAT
38
PORTELLO ISPEZIONE CANDELA
653287000C
$17,83 Unit Price incl. VAT
39
VITE AUTOF. TCCIC D4,2x13 UNI 947
259349
$0,17 Unit Price incl. VAT
40
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT
41
Left upper passenger footrest
654361000C
$12,45 Unit Price incl. VAT
42
PEDANINA PASSEGGERO INFERIORE SX.
654363000C
$44,19 Unit Price incl. VAT
43
TAPPETINO PASSEGGERO SX.
654365
$36,58 Unit Price incl. VAT
44
PEDANINA PASSEGGERO SUPERIORE DX.
654362000C
$12,45 Unit Price incl. VAT
45
PEDANINA PASSEGGERO INFERIORE DX.
654364000C
$8,16 Unit Price incl. VAT
46
TAPPETINO PASSEGGERO DX.
654366
$36,58 Unit Price incl. VAT
47
VITE METRICA CON CODOLO
575249
$0,66 Unit Price incl. VAT
48
VITE
624995
$3,70 Unit Price incl. VAT
49
VITE TCEI M6X30 CL8.8
319538
$0,19 Unit Price incl. VAT
50
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
51
VITE AUTOF. TCCIC D4,2x13 UNI 947
259349
$0,17 Unit Price incl. VAT
52
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT
53
VITE AUTOF.CON TAGLIO A CROCE 3,5x13
297498
$0,08 Unit Price incl. VAT

Find the detailed Central cover - Footrests GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
