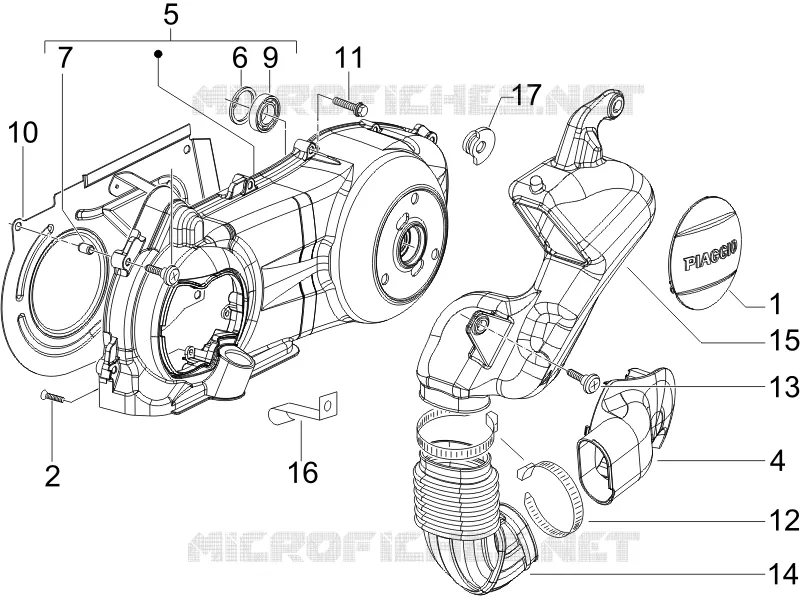

Crankcase cover - Crankcase cooling
1
2
4
5
6
7
9
10
11
12
13
14
15
16
17
1
Transmission cover
CM155109
$6,30 Unit Price incl. VAT
2
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
4
Cooling Cover
840959
$5,38 Unit Price incl. VAT
5
Transmission cover with U.P.
8714725
$258,52 Unit Price incl. VAT
6
Snap ring
006635
$0,25 Unit Price incl. VAT
7
Pin d.9,5 h=15
B015956
$0,75 Unit Price incl. VAT
9
Radial bearing 15x35x11
4789853
$6,05 Unit Price incl. VAT
10
Air deflector
834266
$4,30 Unit Price incl. VAT
11
Screw w/ flange M6x30
B016792
$0,25 Unit Price incl. VAT
11
Screw w/ flange M6x30
289731
Not Available
12
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
13
Metric screw TBC
259348
$2,99 Unit Price incl. VAT
14
Bellows
621251
$15,98 Unit Price incl. VAT
15
Cooloing box
621252
$10,57 Unit Price incl. VAT
16
Hose clamp
844964
$0,25 Unit Price incl. VAT
17
Retainer buffer
871458
$1,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
