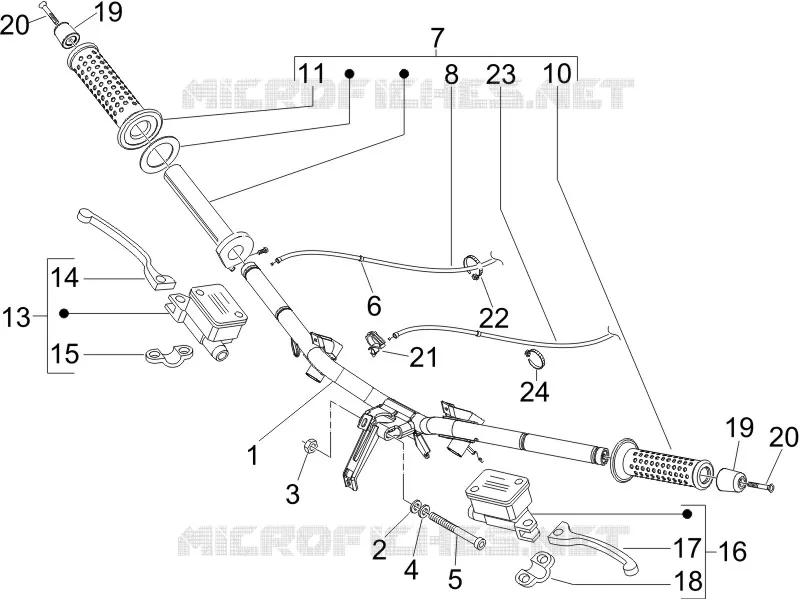

Handlebars - Master cil.
1
2
3
4
5
6
7
8
10
11
13
14
15
16
17
18
19
19
20
20
21
22
23
24
1
Handlebar
5994065
Not Available
2
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
3
Nut M10
015330
$0,25 Unit Price incl. VAT
4
Flat washer
178790
$0,51 Unit Price incl. VAT
5
Hex socket screw
655554
$3,70 Unit Price incl. VAT
6
Elastic spring
231590
$0,25 Unit Price incl. VAT
7
Throttle control sleeve assembly
CM079715
$43,38 Unit Price incl. VAT
8
Throttle opening transmission
649435
Not Available
10
Grip, l.h.
271452
$13,37 Unit Price incl. VAT
11
Grip, r.h.
271453
$13,37 Unit Price incl. VAT
13
Right brake hydraulic pump
CM081201
$49,67 Unit Price incl. VAT
14
Brake lever Heng Tong
600475
$11,82 Unit Price incl. VAT
15
Bracket
600476
$11,06 Unit Price incl. VAT
16
(Heng Tong) Left brake pump
CM081203
$49,99 Unit Price incl. VAT
17
Brake lever Heng Tong
600475
$11,82 Unit Price incl. VAT
18
U-bolt Heng Tong
600478
$11,06 Unit Price incl. VAT
19
End terminal
675544
$14,20 Unit Price incl. VAT
19
End terminal
271433
$20,41 Unit Price incl. VAT
20
screw M6x55
271434
Not Available
21
Hose clamp
217280
Not Available
22
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
23
Throttle closing transmission
649436
Not Available
24
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
