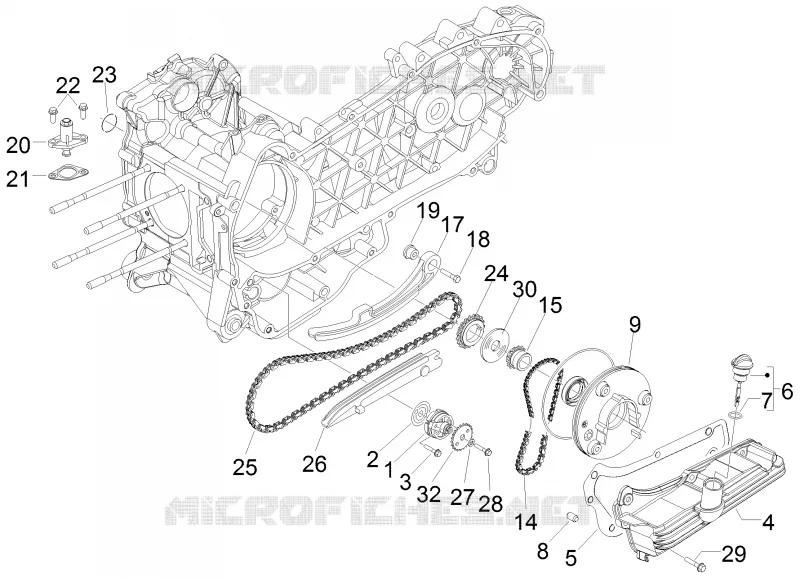

Oil pump
1
2
3
4
5
6
7
8
9
14
15
17
18
19
20
21
22
23
24
25
26
27
28
29
30
32
1
Oil pump assembly
844352
Not Available
1
Oil pump assembly
82877R
Not Available
1
Oil pump assembly
82948R
$14,37 Unit Price incl. VAT
2
Carter-oil pump gasket
847929
$0,34 Unit Price incl. VAT
3
Screw w/ flange M5x35
829593
$0,50 Unit Price incl. VAT
4
Motor oil cup
846096
$11,92 Unit Price incl. VAT
5
Gasket
846098
$3,28 Unit Price incl. VAT
6
Oil plug assembly
843364
$1,39 Unit Price incl. VAT
7
O-ring
479986
Not Available
8
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
9
Timing system cover
847116
$22,74 Unit Price incl. VAT
14
Oil pump chain
82649R
$13,37 Unit Price incl. VAT
15
Oil pump control pinion
82783R
$7,99 Unit Price incl. VAT
17
Chain tensioner rod
1A005929
$10,67 Unit Price incl. VAT
17
Chain tensioner rod
840344
$4,20 Unit Price incl. VAT
18
Screw w/ flange M6x25
414837
Not Available
19
Chain tensioner rod spacer
485868
$0,29 Unit Price incl. VAT
20
Chain tensioner bracket
289919
Not Available
21
Guarnizione cilindro/tendicatena
847928
$0,42 Unit Price incl. VAT
22
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
23
O-Ring seal ring
825952
$0,15 Unit Price incl. VAT
24
Timing chain pinion
82782R
$7,06 Unit Price incl. VAT
25
Camshaft chain
82723R
$24,71 Unit Price incl. VAT
26
Chain tensioner sliding block
847516
$4,25 Unit Price incl. VAT
27
Belleville spring Ø6,4xØ20x2
436695
$0,59 Unit Price incl. VAT
28
Screw w/ flange M6x14
833722
Not Available
28
Screw w/ flange M6x14
B016426
$0,42 Unit Price incl. VAT
29
Screw w/ flange M6x30
B016792
$0,25 Unit Price incl. VAT
29
Screw w/ flange M6x30
289731
Not Available
30
Oil seal washer
483918
$0,53 Unit Price incl. VAT
32
Oil pump gear
287913
$6,47 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
