Front headlamps - Turn signal lamps for Fly 4T E3 from 2012

Front headlamps - Turn signal lamps

1

Headlamp, assy

642568

$70,05 Unit Price incl. VAT

2

Lamp HS1 35+35W 12V

231215

$36,45 Unit Price incl. VAT

3

Self tapping screw L=35 mm

296458

$2,25 Unit Price incl. VAT

4

RH front turn indicator

642531

$37,57 Unit Price incl. VAT

5

Lamp 12V-10W

584332

$11,15 Unit Price incl. VAT

6

Lamp 12V-5W

292022

Not Available

7

Cable harness r.h.

643007

Not Available

8

Lock-strap L=180mm

145298

$0,08 Unit Price incl. VAT

9

Connector spring

584520

$5,38 Unit Price incl. VAT

10

Hose clamp 2,7x132

640879

$0,92 Unit Price incl. VAT

11

LH front turn indicator

642532

$37,57 Unit Price incl. VAT

12

Cable harness l.h.

643006

Not Available

13

Self tapping screw D4.2x16

CM178601

$0,16 Unit Price incl. VAT

14

Spring plate

CM017410

$0,34 Unit Price incl. VAT

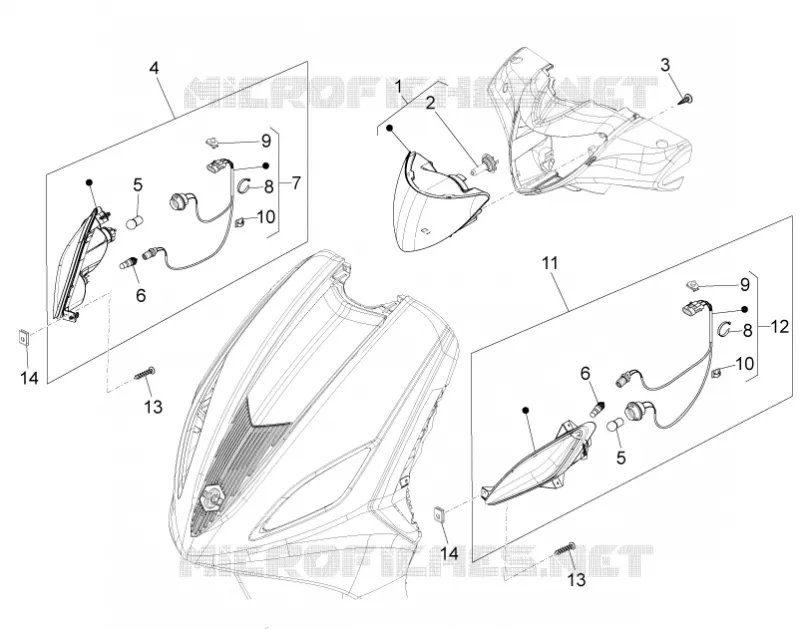

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
