Engine displacement
125
2
Model
FLY
3
Year
2012
4
Trim
Fly 4T E3
5
Parts Catalog
Saddle/seats
6

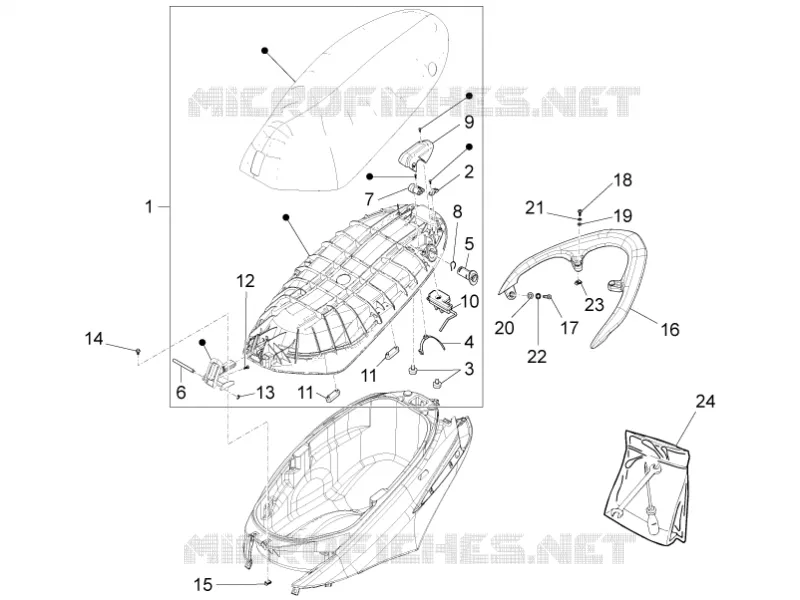

Parts Diagram
Parts Catalog
Locks
by
Main cable harness
Saddle/seats
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Saddle assembly
67309400C1
Not Available
1
Saddle assembly
5A000097000C1
Not Available
2
Bracket
296743
$5,73 Unit Price incl. VAT
3
Pad
577492
$4,21 Unit Price incl. VAT
4
Hose clamp
298729
$0,34 Unit Price incl. VAT
5
Lock body
673816
$5,38 Unit Price incl. VAT
6
Pin
672633
$3,65 Unit Price incl. VAT
7
Cam
673817
$8,65 Unit Price incl. VAT
8
Spring
672628
$3,65 Unit Price incl. VAT
9
Complete tightening cover
673818
$7,69 Unit Price incl. VAT
10
Saddle lock
673820
$18,75 Unit Price incl. VAT
11
Stop buffer
296456
$2,77 Unit Price incl. VAT
12
Self-tap screw
CM178604
$0,08 Unit Price incl. VAT
13
Ring
005965
$2,95 Unit Price incl. VAT
14
Screw w/ flange
436788
Not Available
15
Spring plate M6
254485
$0,34 Unit Price incl. VAT
16
Rear luggage rack
673681000C
$27,16 Unit Price incl. VAT
17
Hex socket screw
975840
$3,65 Unit Price incl. VAT
18
Screw metrica
CM179303
$0,34 Unit Price incl. VAT
19
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
20
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
21
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
22
Notched washer 14x8,3x1,8
012540
$0,08 Unit Price incl. VAT
23
Spring plate M6
254485
$0,34 Unit Price incl. VAT
24
Complete tools bag
6674995
$13,25 Unit Price incl. VAT
