Flywheel magneto cover - Oil filter for Fly 4T E3 from 2012

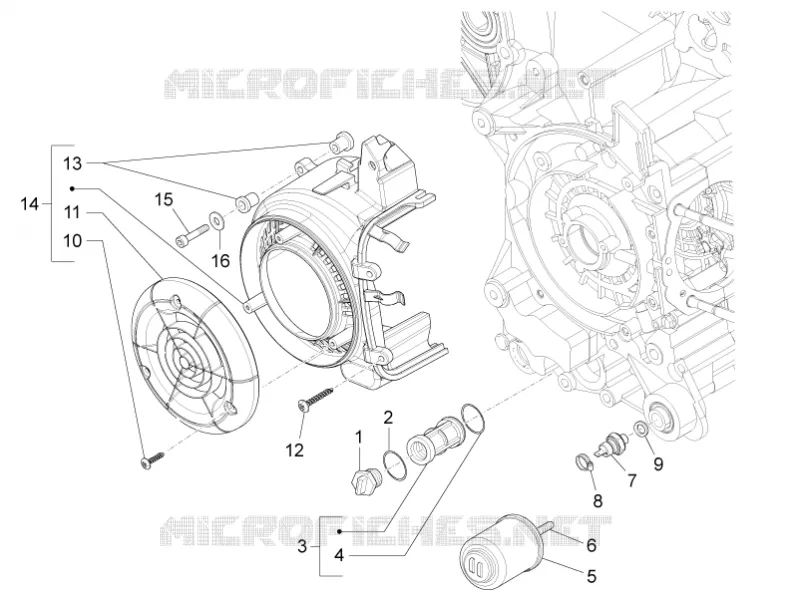

Flywheel magneto cover - Oil filter

1

Oil filter plug

826165

$5,88 Unit Price incl. VAT

2

O-ring 31,47x1,78

285536

$0,92 Unit Price incl. VAT

3

Intake oil filter

483841

$3,55 Unit Price incl. VAT

4

O-ring 20,35x1,78

288474

$0,08 Unit Price incl. VAT

5

Oil filter

82635R

$12,36 Unit Price incl. VAT

6

Special screw

483776

$1,49 Unit Price incl. VAT

7

Oil pressure sensor

641541

Not Available

8

Hose clamp

825481

$3,38 Unit Price incl. VAT

9

Washer 10.5X16X2.5

486075

$1,58 Unit Price incl. VAT

10

Self-tap screw M3x20

258146

$0,25 Unit Price incl. VAT

11

Conveyor cover

876919

$24,59 Unit Price incl. VAT

12

screw

259577

$0,17 Unit Price incl. VAT

13

Bush

843757

$1,44 Unit Price incl. VAT

14

Air deflector

876918

Not Available

15

Hex socket screw M5x25

486972

$0,09 Unit Price incl. VAT

16

Washer Ã˜5xÃ˜12x1.1

828583

$0,08 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
