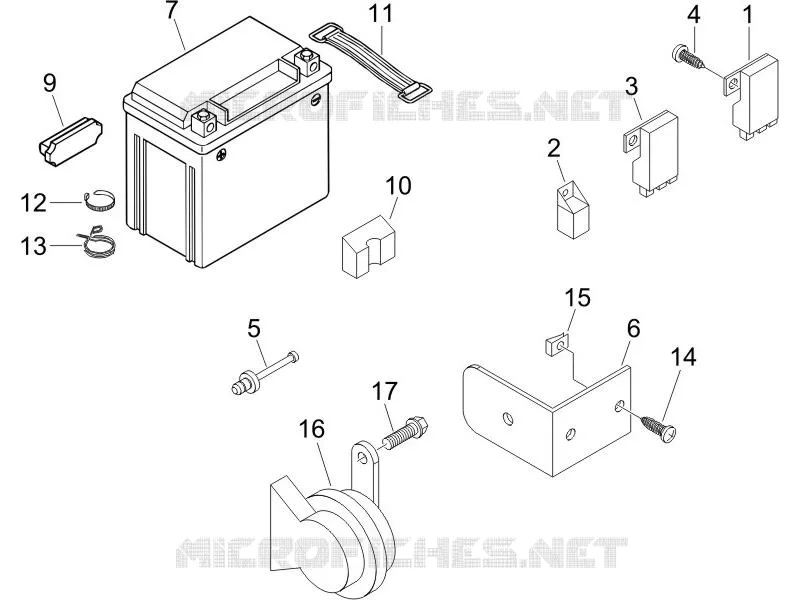

Remote control switches - Battery - Horn
1
2
3
4
5
6
7
9
10
11
12
13
14
15
16
17
1
Rem. control switch 12V-30A
581139
Not Available
2
Starter relay 12V-80A
58115R
$9,18 Unit Price incl. VAT
3
Rem. control switch
582634
Not Available
4
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
5
Ambient temperature sensor
581142
Not Available
6
Bracket
583531
Not Available
7
Battery 12V-9Ah
584810
$180,83 Unit Price incl. VAT
9
Pad
577313
$5,53 Unit Price incl. VAT
10
Pad
583310
$1,60 Unit Price incl. VAT
11
Strip
090854
$8,01 Unit Price incl. VAT
12
Hose clamp
639082
$3,65 Unit Price incl. VAT
13
Spring
140435
$1,01 Unit Price incl. VAT
14
TBCIC Screw M5x12
015935
$4,82 Unit Price incl. VAT
15
Spring plate M5
248419
$0,67 Unit Price incl. VAT
16
Warning horn 12V
581441
$46,92 Unit Price incl. VAT
17
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
