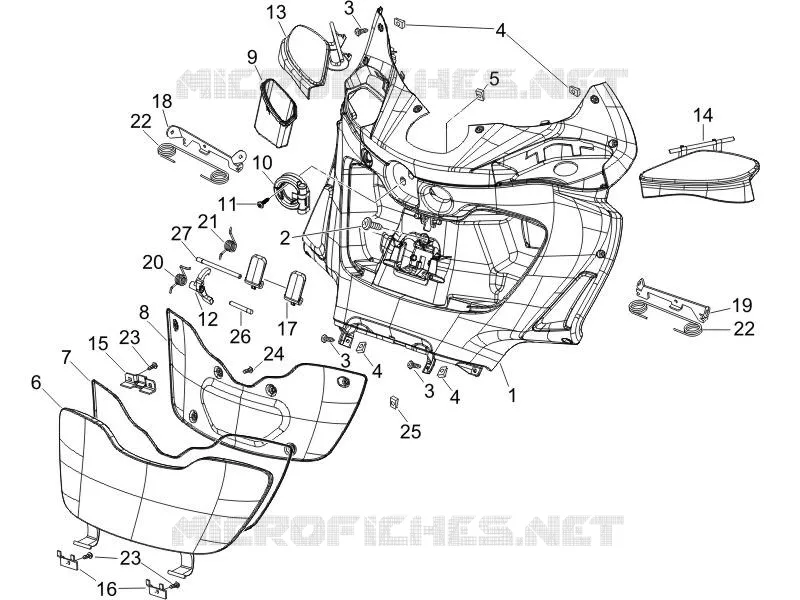

Front glove-box - Knee-guard panel
1
2
3
3
3
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
23
24
25
26
27
1
Top box
577752000P
$215,79 Unit Price incl. VAT
2
Screw M6x16
272836
$3,70 Unit Price incl. VAT
3
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
4
Spring plate
CM017410
$0,34 Unit Price incl. VAT
5
Spring plate M6
254485
$0,34 Unit Price incl. VAT
6
Top case door
576847000P
$51,49 Unit Price incl. VAT
7
Gasket
CM006304
Not Available
8
Counter flap
576816
$20,60 Unit Price incl. VAT
9
Top case container
575849
$11,69 Unit Price incl. VAT
10
Bag holder hook
575819
$12,88 Unit Price incl. VAT
11
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
12
Pawl
575607
$1,35 Unit Price incl. VAT
13
Dashboard door l.h.
575574000P
$26,74 Unit Price incl. VAT
14
Dashboard door r.h.
575575000P
$26,74 Unit Price incl. VAT
15
Square
252420
$0,59 Unit Price incl. VAT
16
Door fixing bracket
257614
$1,09 Unit Price incl. VAT
17
Lever
575609
Not Available
18
LH plate
575844
$13,53 Unit Price incl. VAT
19
RH plate
575845
$13,53 Unit Price incl. VAT
20
Spring
575608
$5,38 Unit Price incl. VAT
21
Spring
575610
$5,38 Unit Price incl. VAT
22
Door spring
575846
$7,23 Unit Price incl. VAT
23
Self tapping screw
297498
$0,08 Unit Price incl. VAT
24
Self tapping screw
296141
$0,08 Unit Price incl. VAT
25
Spring plate
CM017410
$0,34 Unit Price incl. VAT
26
Pin
270147
Not Available
27
Pin
575062
$5,38 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
