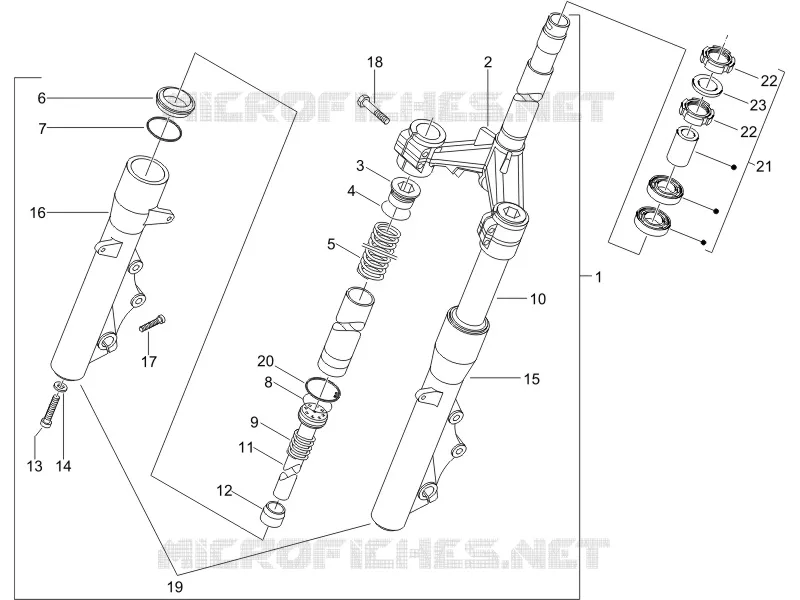

Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
1
FF FORK ASSY.
56172R
$613,71 Unit Price incl. VAT
1
Front fork
56267R
Not Available
2
LH sleeve
497005
$94,98 Unit Price incl. VAT
2
BOTTOM YOKE
601131
Not Available
2
FORK MOUNTING SUPPORT KAIABA
601313
$123,59 Unit Price incl. VAT
3
RH sleeve
497006
Not Available
3
Plug
601142
Not Available
3
Plug
601312
$7,11 Unit Price incl. VAT
4
O-Ring
601141
Not Available
4
Fork stanchion KAIABA
601307
Not Available
4
O-ring
600615
$4,82 Unit Price incl. VAT
4
O-ring
497017
$4,82 Unit Price incl. VAT
5
SPRING
601144
Not Available
5
Fork cylinder
601308
$9,56 Unit Price incl. VAT
5
Fork spring
600614
$7,72 Unit Price incl. VAT
5
Fork spring
601309
Not Available
6
Dust cover
600613
$8,65 Unit Price incl. VAT
6
Dust cover
497131
Not Available
6
Fork spring
601309
Not Available
7
Fork oil seal
601310
$25,95 Unit Price incl. VAT
7
Fork oil seal
600608
$18,86 Unit Price incl. VAT
8
Elastic ring
601140
Not Available
9
Fork spring
600619
$1,06 Unit Price incl. VAT
9
Fork oil seal
601310
$25,95 Unit Price incl. VAT
9
Spring
601143
$4,82 Unit Price incl. VAT
9
Spring
599421
$0,83 Unit Price incl. VAT
10
Fork stanchion ESCORTS
600607
Not Available
10
Fork stanchion KAIABA
601307
Not Available
10
Sleeve M.V.P.
601134
Not Available
11
FF SHOCK CARTRIDGE
601139
Not Available
11
Fork complete cylinder
600606
$6,03 Unit Price incl. VAT
11
Fork cylinder
601308
$9,56 Unit Price incl. VAT
11
screw (Kayaba)
599269
$3,65 Unit Price incl. VAT
12
Oil plug
497011
$4,82 Unit Price incl. VAT
12
Pad
601138
Not Available
13
Washer (Kayaba)
599270
$3,65 Unit Price incl. VAT
13
screw
598180
Not Available
13
screw (Kayaba)
599269
$3,65 Unit Price incl. VAT
14
Washer (Kayaba)
599270
$3,65 Unit Price incl. VAT
14
Gasket
600611
Not Available
14
Washer
598181
$3,65 Unit Price incl. VAT
14
O-ring
497017
$4,82 Unit Price incl. VAT
15
LH slider
600603
$100,47 Unit Price incl. VAT
15
Oil plug
497011
$4,82 Unit Price incl. VAT
15
LH sleeve
497005
$94,98 Unit Price incl. VAT
16
RH sleeve
497006
Not Available
16
RH slider
600604
Not Available
16
Gasket ring
497132
$3,65 Unit Price incl. VAT
17
screw (Kayaba)
599262
$3,65 Unit Price incl. VAT
17
screw
598189
$2,95 Unit Price incl. VAT
17
Spring
599421
$0,83 Unit Price incl. VAT
18
SCREW
601130
Not Available
18
screw
600270
Not Available
18
Dust cover
497131
Not Available
19
Couple Sleeve Shock absorber
601454
Not Available
20
Sleeve M.V.P.
601134
Not Available
20
Gasket ring
497132
$3,65 Unit Price incl. VAT
20
Ring
600612
$3,65 Unit Price incl. VAT
21
Steering bear. assy.
583212
Not Available
21
screw
598180
Not Available
22
Steering tube ring nut
011109
Not Available
22
screw
598189
$2,95 Unit Price incl. VAT
23
SCREW
601130
Not Available
23
Steering security plate
582787
$3,65 Unit Price incl. VAT
24
Washer
598181
$3,65 Unit Price incl. VAT
25
O-Ring
601141
Not Available
26
Pad
601138
Not Available
27
Plug
601142
Not Available
28
Spring
601143
$4,82 Unit Price incl. VAT
29
SPRING
601144
Not Available
31
FF SHOCK CARTRIDGE
601139
Not Available
32
Elastic ring
601140
Not Available
33
LH slider
600603
$100,47 Unit Price incl. VAT
34
RH slider
600604
Not Available
35
Fork complete cylinder
600606
$6,03 Unit Price incl. VAT
36
Fork stanchion ESCORTS
600607
Not Available
37
Fork spring
600614
$7,72 Unit Price incl. VAT
38
Fork oil seal
600608
$18,86 Unit Price incl. VAT
39
Ring
600612
$3,65 Unit Price incl. VAT
40
Dust cover
600613
$8,65 Unit Price incl. VAT
41
Gasket
600611
Not Available
42
O-ring
600615
$4,82 Unit Price incl. VAT
43
Fork spring
600619
$1,06 Unit Price incl. VAT
44
Steering bearing assy.
600921
Not Available
45
Lower steering bearing
CM061304
Not Available
46
Missing description
000000
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
