1
Engine displacement
400
2
Model
X8
3
Year
2007
4
Trim
X8 ie Euro 3
5
Parts Catalog
Handlebars coverages
6
Parts Diagram
Parts Catalog
Cooling system
by
Meter combination - Cruscotto
Handlebars coverages
1
2
3
4
5
6
7
8
9
9
10
10
11
12
13
14
15
16
17
18
1
Rear handlebars cover
598219000P
Not Available
2
VITE AUTOF. TCCIC D4,2x13 UNI 947
259349
$0,17 Unit Price incl. VAT
3
VITE AUTOFIL. TBCIC 3,8x16
270793
$0,08 Unit Price incl. VAT
4
PIASTRINA ELASTICA
CM017409
$0,08 Unit Price incl. VAT
5
COPRIMANUBRIO ANTERIOR
581494000P
$18,75 Unit Price incl. VAT
6
VITE PER PLASTICHE 4x20
227983
$3,65 Unit Price incl. VAT
7
COPERCHIO POMPA DX.
581496000P
$5,38 Unit Price incl. VAT
8
COPERCHIO POMPA SX.
581497000P
$5,38 Unit Price incl. VAT
9
VITE A TESTA BOMB.ESAG.INCASSATO
581957
$0,16 Unit Price incl. VAT
10
PIASTRINA ELASTICA
CM017418
$3,65 Unit Price incl. VAT
11
PARTE SUPER. CRUSCOTTO
576835000P
$36,58 Unit Price incl. VAT
12
VITE
258249
$0,09 Unit Price incl. VAT
13
PIASTRINA EL.6,5X11X0
CM017408
$0,25 Unit Price incl. VAT
14
VIT.CIL.BOMB.ES.INC.PS
581175
$0,17 Unit Price incl. VAT
15
VITE AUTOFILETTANTE
259372
$2,99 Unit Price incl. VAT
16
PIASTRINA ELASTICA
CM017409
$0,08 Unit Price incl. VAT
17
PIASTRINA ELASTICA
248419
$0,67 Unit Price incl. VAT
18
MASCHERA MAN.
5814935
$33,81 Unit Price incl. VAT
18
Handlebar grill
58149350N5
Not Available

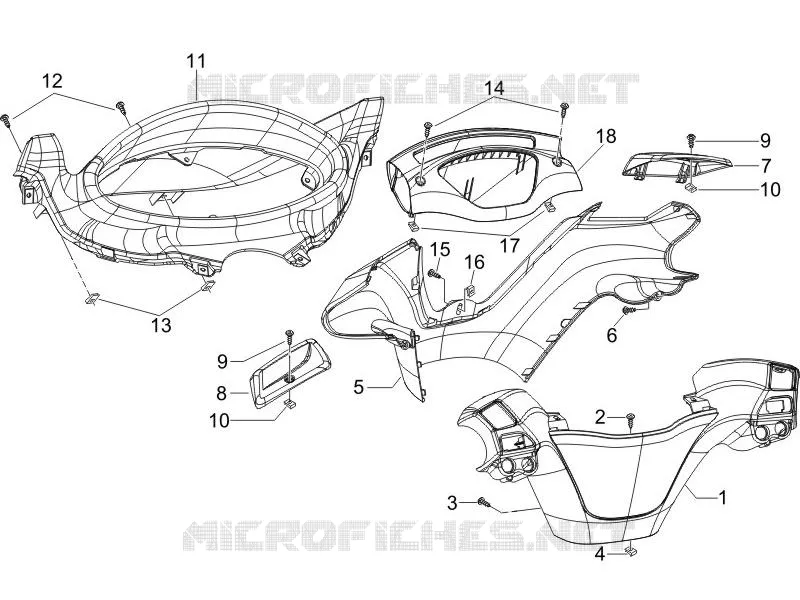

Find the detailed Handlebars coverages GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
