1
Engine displacement
400
2
Model
X8
3
Year
2007
4
Trim
X8 ie Euro 3
5
Parts Catalog
Front shield
6
Parts Diagram
Parts Catalog
Stand/s
by
Windshield - Glass
Front shield
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Frame
62043100EB
Not Available
1
RIM
62043100ND
$242,84 Unit Price incl. VAT
1
RIM
62043100ES
Not Available
1
RIM
620431
Not Available
1
Frame
62043100F2
$242,84 Unit Price incl. VAT
1
Nose panel
62043100DE
$242,84 Unit Price incl. VAT
2
VITE
258249
$0,09 Unit Price incl. VAT
3
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT
4
SCUDO
57556100F2
$553,92 Unit Price incl. VAT
4
shield
57556100EB
Not Available
4
SCUDO
5755615
$170,45 Unit Price incl. VAT
4
SHIELD
57556100ND
$553,92 Unit Price incl. VAT
4
Front shield
57556100DE
$553,92 Unit Price incl. VAT
5
VITE
271891
$3,65 Unit Price incl. VAT
6
VITE METRICA CON INT.A CROCE M6x16.
272836
$3,70 Unit Price incl. VAT
7
VITE METRICA CON CODOLO
575249
$0,66 Unit Price incl. VAT
8
VITE
258249
$0,09 Unit Price incl. VAT
9
RONDELLA PIANA METALLICA
013880
$0,08 Unit Price incl. VAT
10
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT
11
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
12
Air intake
620433
$6,30 Unit Price incl. VAT
13
Grid
620434
$7,23 Unit Price incl. VAT
14
Air intake
620661
$6,30 Unit Price incl. VAT
15
GRIGLIA USCITA ARIA SX
620662
$7,23 Unit Price incl. VAT
16
VITE AUTOF.CON TAGLIO A CROCE 3,5x13
297498
$0,08 Unit Price incl. VAT

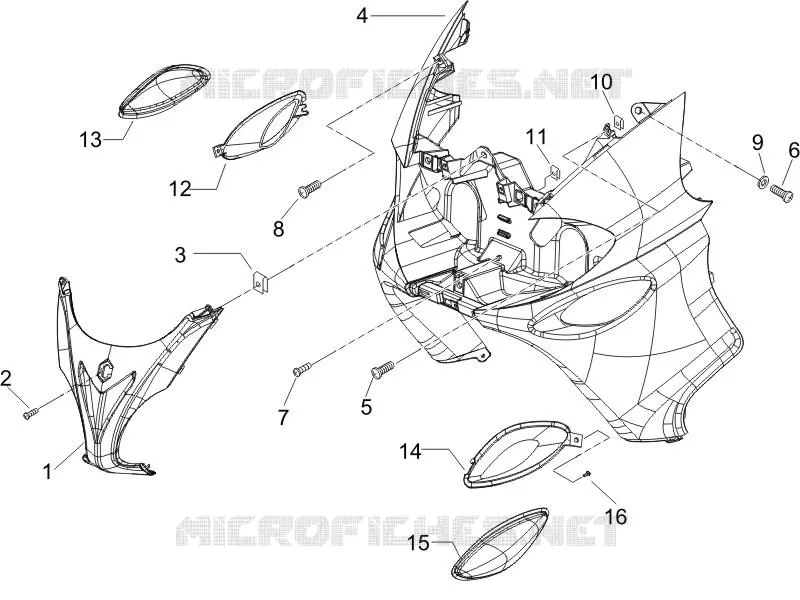

Find the detailed Front shield GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
