1
Engine displacement
400
2
Model
X8
3
Year
2007
4
Trim
X8 ie Euro 3
5
Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Supply system
by
Handlebars coverages
Cooling system
1
2
3
3
3
4
5
5
6
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
33
34
35
36
37
1
pipe
620690
Not Available
2
TUBO RIT.RAD.SER.LIQ.R
575540
$7,23 Unit Price incl. VAT
3
FASCETTA STRINGITUBO
CM001903
$0,84 Unit Price incl. VAT
4
FASCETTA STRINGITUBO
CM001904
$0,75 Unit Price incl. VAT
5
FASCETTA STRINGITUBO
CM001907
$0,84 Unit Price incl. VAT
6
FASCETTA STRINGITUBO(D.30,8 S.0,6 L.7)
CM001908
$3,65 Unit Price incl. VAT
8
FASCETTA A STRAPPO
257134
$0,25 Unit Price incl. VAT
9
pipe
620593
Not Available
10
Coolant tank
623848
Not Available
11
TAPPO SERB.LIQUIDO RAF
623673
$15,97 Unit Price incl. VAT
12
GUARNIZIONE SERBATOIO ESP.
620737
$4,82 Unit Price incl. VAT
13
TAMPONE
258904
$0,25 Unit Price incl. VAT
14
TERMOINTERRUTTORE
584715
$24,35 Unit Price incl. VAT
15
GUARNIZIONE INIETTORE
168077
$3,65 Unit Price incl. VAT
16
TAMPONE ELASTICO
351782
$0,34 Unit Price incl. VAT
17
TAMPONE
258904
$0,25 Unit Price incl. VAT
18
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
19
RONDELLA D6,2XD20X1
013092
$0,17 Unit Price incl. VAT
20
DISTANZIALE
273288
$1,01 Unit Price incl. VAT
21
RADIATOR RUNNER,B,X9
57302R
Not Available
22
TUBO COLLEGAMENTO TESTA - RADIATORE
653210
$20,75 Unit Price incl. VAT
23
Fan engine
580922
Not Available
24
VITE METRICA CON INT.A CROCE M6x16.
272836
$3,70 Unit Price incl. VAT
25
VITE AUTOFILETTANTE
267958
$0,25 Unit Price incl. VAT
26
Flat washer 5,3x14x1
060201
Not Available
27
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
28
VITE A TESTA CILINDRICA M5X21
015856
$0,16 Unit Price incl. VAT
29
DADO AUTOFR. M5-6H UNI 4721
012112
$0,29 Unit Price incl. VAT
30
Radiator grill closure
624511
Not Available
31
VITE A TESTA CILIN.
015761
$2,95 Unit Price incl. VAT
32
DADO AUTOFRENANTE
241936
$0,08 Unit Price incl. VAT
33
STAFFA SERB.LIQUIDO RA
575864
$1,17 Unit Price incl. VAT
34
VITE AUTOFIL. TBCIC 3,8x16
270793
$0,08 Unit Price incl. VAT
35
MOLLETTA RITEGNO TUBI
CM006903
$1,43 Unit Price incl. VAT
36
Maintenance
299382
Not Available
37
FASCETTA A STRAPPO
145298
$0,08 Unit Price incl. VAT

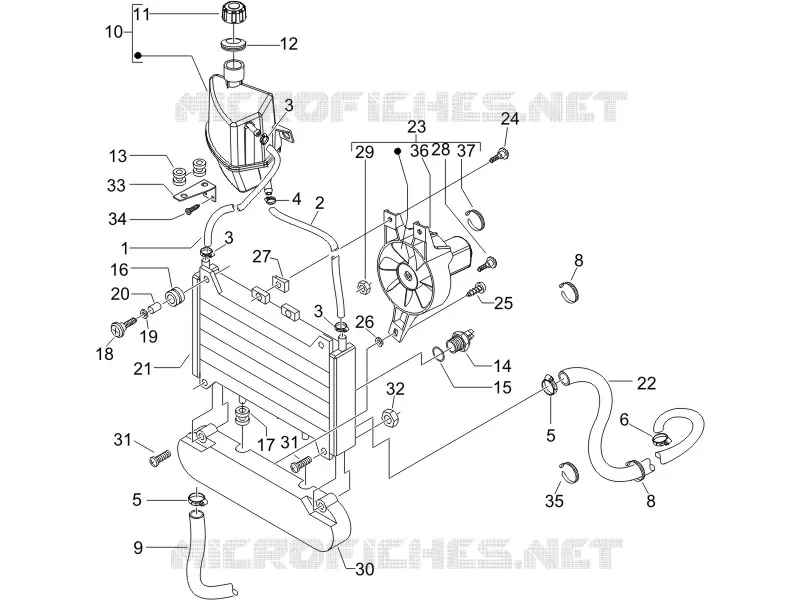

Find the detailed Cooling system GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
