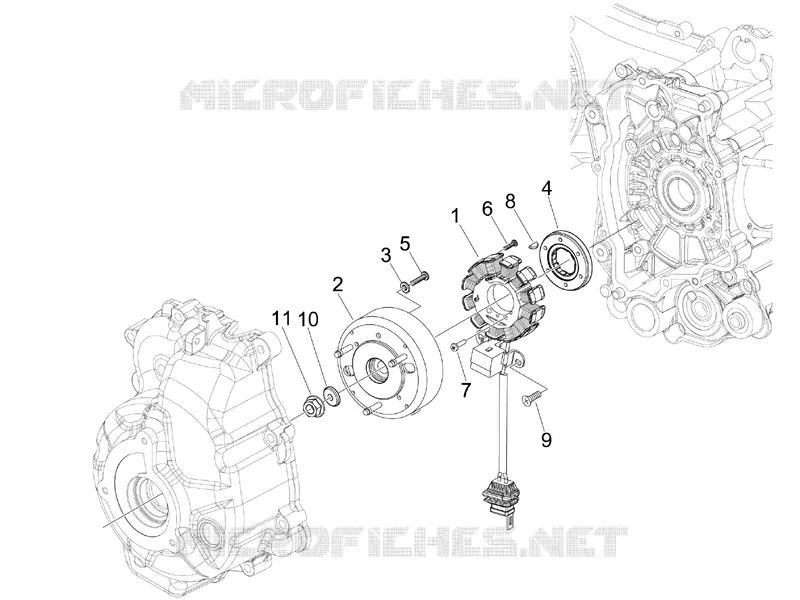

Flywheel magneto
1
2
3
4
5
6
7
8
9
10
11
1
Stator
58070R
$152,55 Unit Price incl. VAT
2
Rotor cpl.
58071R
Not Available
3
Break washer
479515
$0,08 Unit Price incl. VAT
4
Complete freewheel
8477975
$71,50 Unit Price incl. VAT
5
Hex socket screw M6x24
847679
Not Available
6
Low head socket screw M6x30
122637
$0,28 Unit Price incl. VAT
7
Screw M5x10
018575
$2,95 Unit Price incl. VAT
8
Transmission key
000097
$5,21 Unit Price incl. VAT
9
Screw M5x10
018575
$2,95 Unit Price incl. VAT
10
Plain washer
842385
$0,68 Unit Price incl. VAT
11
Nut
842388
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
