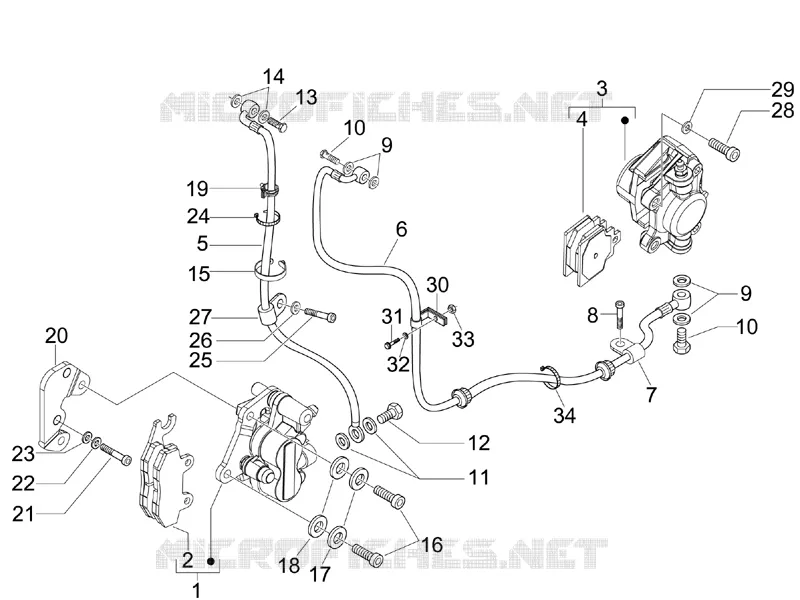

Brakes pipes - Calipers
1
2
3
4
5
6
7
8
9
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
Brake caliper Heng Tong
CM068301
Not Available
2
Brake pads couple Heng Tong
647078
$35,62 Unit Price incl. VAT
3
Right brake pin
CM068305
$233,55 Unit Price incl. VAT
4
Brake pads kit
647079
$36,45 Unit Price incl. VAT
5
FRONT BRAKE (FLEXIBLE HOSE)
649859
$33,05 Unit Price incl. VAT
6
FLEXIBLE REAR BRAKE HOSE
649988
Not Available
7
Hose clamp
9004461193000
Not Available
8
screw
319165
$3,65 Unit Price incl. VAT
9
Gasket
127927
$0,25 Unit Price incl. VAT
10
Oil pipe screw M10x18
265451
$9,25 Unit Price incl. VAT
11
Gasket
127927
$0,25 Unit Price incl. VAT
12
Oil pipe screw M10x18
265451
$9,25 Unit Price incl. VAT
13
Oil pipe screw M10x18
265451
$9,25 Unit Price incl. VAT
14
Gasket
127927
$0,25 Unit Price incl. VAT
15
Hose clamp
307166
$2,99 Unit Price incl. VAT
16
screw
319165
$3,65 Unit Price incl. VAT
17
Spring washer
709047
$0,08 Unit Price incl. VAT
18
Washer
016604
$2,99 Unit Price incl. VAT
19
Pipes/cables retainer spring L=16
CM006907
$1,51 Unit Price incl. VAT
20
Brake caliper support plate
649553
Not Available
21
screw
649554
$3,65 Unit Price incl. VAT
22
Washer
709110
Not Available
23
Washer
709646
Not Available
24
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
25
Hex socket screw
122675
$2,99 Unit Price incl. VAT
26
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
27
Hose clamp
269273
$3,65 Unit Price incl. VAT
28
screw
647799
$3,65 Unit Price incl. VAT
29
Plain washer 10,4x18x2
016626
$0,08 Unit Price incl. VAT
30
CLIP
649866
Not Available
31
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
32
Spring washer
709047
$0,08 Unit Price incl. VAT
33
Nut
219277
$0,16 Unit Price incl. VAT
34
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
