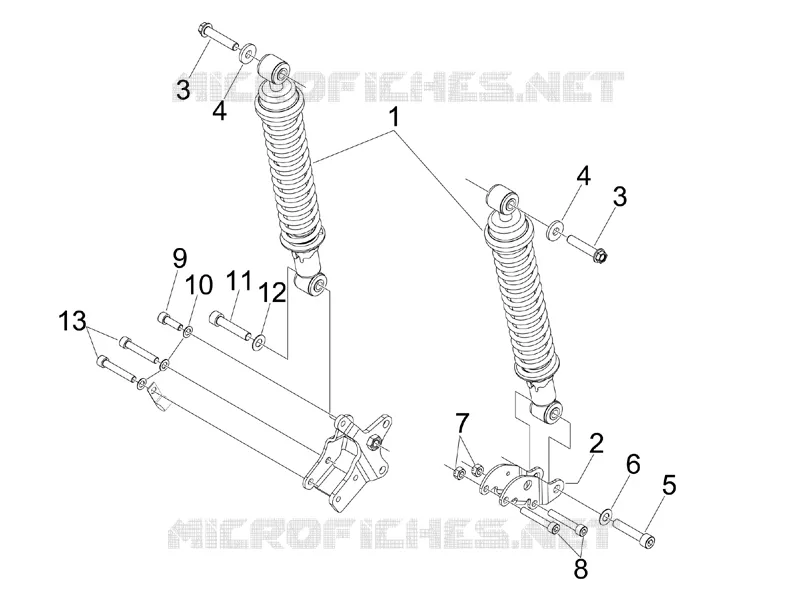

Rear suspension - Shock absorber/s
1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
1
Rear shock absorber cpl.
56235R
Not Available
2
LH clamp
598938
$7,01 Unit Price incl. VAT
3
Screw w/ flange
598838
$1,46 Unit Price incl. VAT
4
Flat washer
178790
$0,51 Unit Price incl. VAT
5
screw
583480
$0,84 Unit Price incl. VAT
6
Washer
709646
Not Available
7
Nut M8
020008
$0,08 Unit Price incl. VAT
8
Hex socket screw M8x50
844483
$0,67 Unit Price incl. VAT
9
screw
271596
$0,34 Unit Price incl. VAT
10
Spring washer
709047
$0,08 Unit Price incl. VAT
11
screw
583480
$0,84 Unit Price incl. VAT
12
Washer
709646
Not Available
13
Hex socket screw M8x50
844483
$0,67 Unit Price incl. VAT
14
CALIPER AND SHOCK ABSORBER SUPPORT BRACK
649212
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
