1
Engine displacement
500
2
Model
X10
3
Year
2012
4
Trim
X10 4T 4V I.E. E3
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Saddle/seats
by
Front wheel

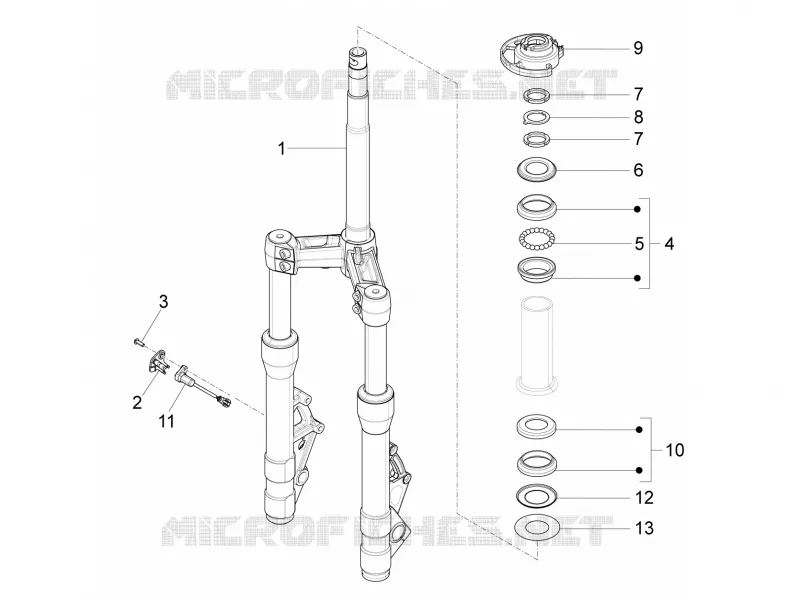

Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
7
8
9
10
11
12
13
1
Front fork assembly
669207
Not Available
2
Complete cover
668489
$3,73 Unit Price incl. VAT
3
screw
842041
$0,08 Unit Price incl. VAT
4
Upper thrust ring
600750
Not Available
5
Missing description
000000
Not Available
6
Cup
600753
$0,92 Unit Price incl. VAT
7
Steering tube ring nut
0111094
$2,60 Unit Price incl. VAT
8
Steering security plate
582787
$3,65 Unit Price incl. VAT
9
Protection collar
666439
$10,00 Unit Price incl. VAT
10
Lower steering bearing
56430R
$29,41 Unit Price incl. VAT
11
ABS sensor
6429875
Not Available
12
Guard washer
600356
$0,94 Unit Price incl. VAT
13
Washer
600357
$0,72 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
