Engine displacement
500
2
Model
X10
3
Year
2012
4
Trim
X10 4T 4V I.E. E3
5
Parts Catalog
Flywheel magneto cover - Oil filter
6

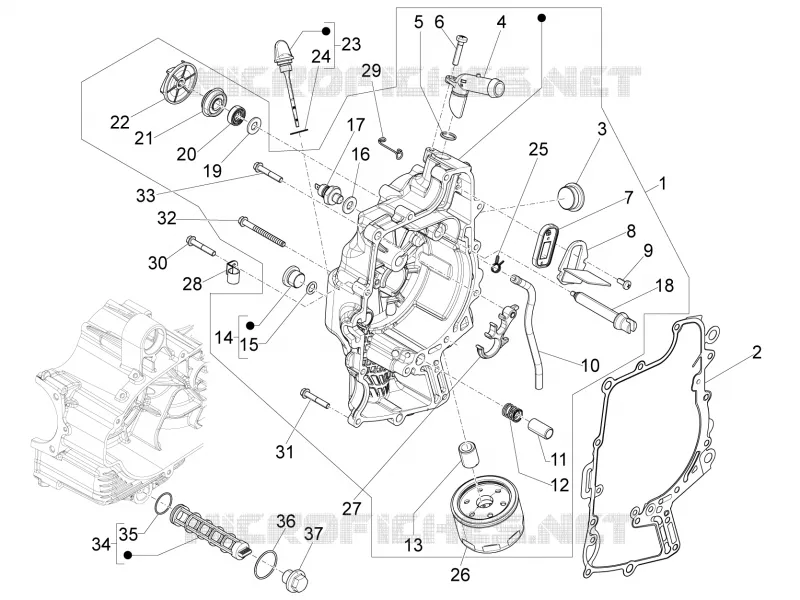

Parts Diagram
Parts Catalog
by
Engine, assembly
Flywheel magneto cover - Oil filter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
Complete flywheel cover
8729175
Not Available
1
Complete flywheel cover
B0174635
$444,15 Unit Price incl. VAT
2
Flywheel housing cover gasket
872914
$17,25 Unit Price incl. VAT
3
Plug M12x1,5
411311
$0,67 Unit Price incl. VAT
4
Breather pipe
829047
$2,57 Unit Price incl. VAT
5
O-ring
237553
$1,36 Unit Price incl. VAT
6
Screw M5x16
015715
$2,25 Unit Price incl. VAT
7
Reed valve support
82778R
$12,01 Unit Price incl. VAT
8
Valve tightening plate with U.P.
876060
$6,38 Unit Price incl. VAT
9
screw M5x10
433800
$0,19 Unit Price incl. VAT
10
Water outlet pipe
871795
$1,03 Unit Price incl. VAT
11
Oil pressure valve
829661
$6,44 Unit Price incl. VAT
12
Spring
829486
$4,82 Unit Price incl. VAT
13
Oil filter union
829122
$4,13 Unit Price incl. VAT
14
Timing plug assembly
8290405
$10,28 Unit Price incl. VAT
15
O-ring
479986
Not Available
16
Washer 10,5x17x1,5
AP9150472
$4,82 Unit Price incl. VAT
17
Oil pressure sensor
641541
Not Available
18
Water pump shaft assy.
872536
$29,47 Unit Price incl. VAT
19
Flat washer 22x12,1x1
274246
$0,34 Unit Price incl. VAT
20
Gasket ring
873934
Not Available
21
Gasket ring
82991R
$24,39 Unit Price incl. VAT
22
Water pump impeller cpl.
827929
Not Available
23
Oil plug rod
874707
$14,97 Unit Price incl. VAT
24
O-ring
479986
Not Available
25
Hose clamp
CM002901
$0,09 Unit Price incl. VAT
26
Oil filter
82960R
$14,99 Unit Price incl. VAT
27
Piping retainer clamp
849825
$4,82 Unit Price incl. VAT
28
Hose clamp
845978
$5,63 Unit Price incl. VAT
29
Spring
B017115
$1,87 Unit Price incl. VAT
30
screw M6x35
414838
$0,67 Unit Price incl. VAT
31
Screw w/ flange M6x25
B016774
$0,34 Unit Price incl. VAT
32
Screw m6x70
434429
$0,60 Unit Price incl. VAT
33
Screw w/ flange M6x50
B016775
$0,42 Unit Price incl. VAT
33
Screw
620068
$3,65 Unit Price incl. VAT
34
Oil filter
826033
$13,61 Unit Price incl. VAT
35
O-ring 20,35x1,78
288474
$0,08 Unit Price incl. VAT
36
O-ring 31,47x1,78
285536
$0,92 Unit Price incl. VAT
37
Oil filter plug
826165
$5,88 Unit Price incl. VAT
